L135-U450003500000

Active

Lumileds

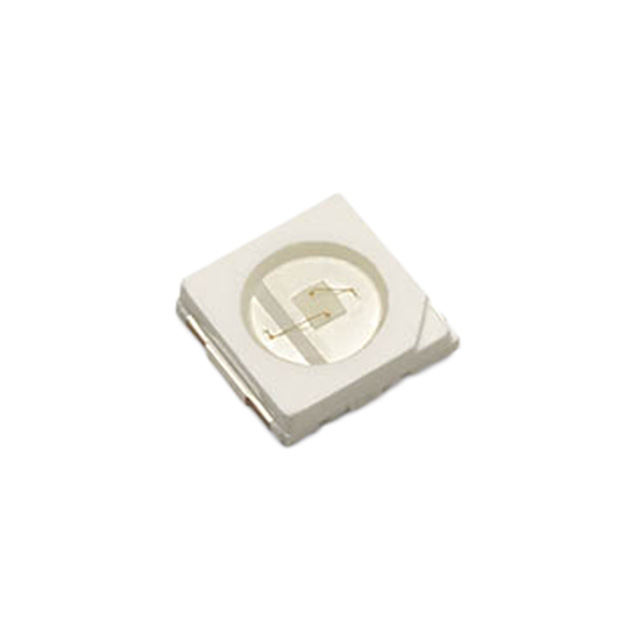

LED UNI-COLOR ROYAL BLUE 155LM 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

L135-U450003500000

Active

Lumileds

LED UNI-COLOR ROYAL BLUE 155LM 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L135-U450003500000

Color	Blue
Current - Max [Max]	200 mA
Current - Test	100 mA
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Luminous Flux @ Current/Temperature	143 mW
Luminous Flux @ Current/Temperature [Max]	155 mW
Luminous Flux @ Current/Temperature [Min]	130 mW
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 "
Size / Dimension [y]	3.4 mm
Size / Dimension [y]	0.134 in
Supplier Device Package	3535
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength	448 nm
Wavelength [Max]	455 nm
Wavelength [Min]	440 nm

L135 Series

Part	CRI (Color Rendering Index)	Package / Case	Package / Case	Thermal Resistance of Package [custom]	Viewing Angle	CCT (K)	Mounting Type	Supplier Device Package	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Wavelength	Wavelength [Max]	Wavelength [Min]
Lumileds L135-3590CA35000P1	90	3535 Metric	1414	14 °C/W	115 °	3500 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Warm White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V
Lumileds L135-2770CA35000P1	70	3535 Metric	1414	14 °C/W	115 °	2700 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Warm White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V
Lumileds L135-5770SA35000P1	70	3535 Metric	1414	14 °C/W	115 °	5700 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V	197 lm/W	55 lm
Lumileds L135-5090CA35000P1	90	3535 Metric	1414	14 °C/W	115 °	5000 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V
Lumileds L135-6590CA35000P1	90	3535 Metric	1414	14 °C/W	115 °	6500 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V
Lumileds L135-6580SA35000P1	80	3535 Metric	1414	14 °C/W	115 °	6500 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V	190 lm/W	53 lm
Lumileds L135-U450003500000		3535 Metric	1414		115 °		Surface Mount	3535	200 mA	0.035 "	0.9 mm	100 mA	Blue	3.4 mm	0.134 in	3.5 mm	0.138 "	3.05 V			130 mW	143 mW	155 mW	448 nm	455 nm	440 nm
Lumileds L135-6590SA35000P1	90	3535 Metric	1414	14 °C/W	115 °	6500 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V	161 lm/W	45 lm
Lumileds L135-6580CA35000P1	80	3535 Metric	1414	14 °C/W	115 °	6500 K	Surface Mount	1414	300 mA	0.035 "	0.9 mm	100 mA	Cool White	3.4 mm	0.134 in	3.5 mm	0.138 "	2.8 V	186 lm/W	52 lm
Lumileds L135-A589003500000		3535 Metric	1414	25 °C/W	115 °		Surface Mount	3535	200 mA	0.035 "	0.9 mm	100 mA	Amber	3.4 mm	0.134 in	3.5 mm	0.138 "	3.05 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.97
		10	$ 0.68
		100	$ 0.50
		500	$ 0.42
		1000	$ 0.39
		2000	$ 0.37
	Digi-Reel®	1	$ 0.97
		10	$ 0.68
		100	$ 0.50
		500	$ 0.42
		1000	$ 0.39
		2000	$ 0.37
	Tape & Reel (TR)	5000	$ 0.35
		10000	$ 0.33
		15000	$ 0.32
		25000	$ 0.32

Description

General part information

L135 Series

Supports ENERGY STAR lumen maintenance certification requirements

Maximum drive current of 200mA delivers superior lumens for reduced LED count

1/7th ANSI color binning delivers tight color control
