82913607A

Active

Souriau-Sunbank by Eaton

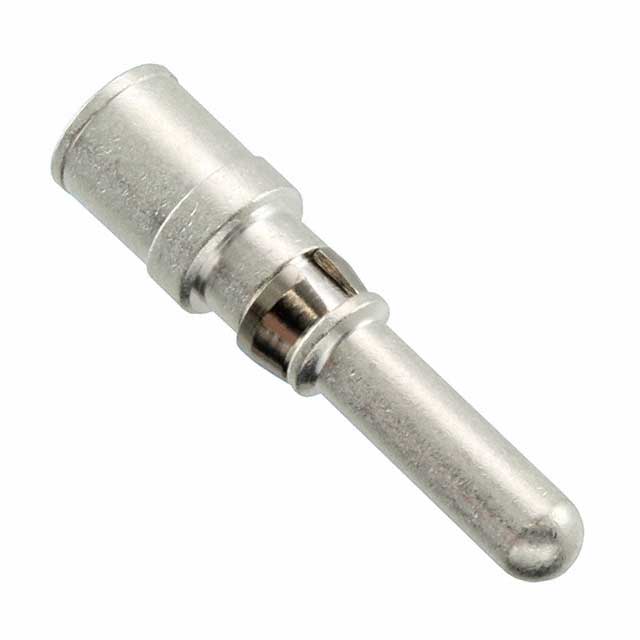

CONTACT PIN 10AWG CRIMP SILVER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONTACT PIN 10AWG CRIMP SILVER

Technical Specifications

Parameters and characteristics for this part

Part	Contact Size	Contact Finish	Contact Material	Type	Contact Termination	Wire Gauge or Range - mm²	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - AWG	Contact Type
Souriau-Sunbank by Eaton 82913601A	8	Silver	Copper Alloy	Power Machined	Crimp	1.5 mm²	2 µm	78.7 µin	16 AWG	Pin
Souriau-Sunbank by Eaton 82913602A	8	Silver	Copper Alloy	Power Machined	Crimp	2.5 mm²	2 µm	78.7 µin	14 AWG	Socket
Souriau-Sunbank by Eaton 82913603A	8	Silver	Copper Alloy	Power Machined	Crimp	2.5 mm²	2 µm	78.7 µin	14 AWG	Pin
Souriau-Sunbank by Eaton 82913606A	8	Silver	Copper Alloy	Power Machined	Crimp	6 mm²	2 µm	78.7 µin	10 AWG	Socket
Souriau-Sunbank by Eaton 82913607A	8	Silver	Copper Alloy	Power Machined	Crimp	6 mm²	2 µm	78.7 µin	10 AWG	Pin
Souriau-Sunbank by Eaton 82913600A	8	Silver	Copper Alloy	Power Machined	Crimp	1.5 mm²	2 µm	78.7 µin	16 AWG	Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact 10 AWG Size 8 Crimp Silver

Technical documentation and resources
