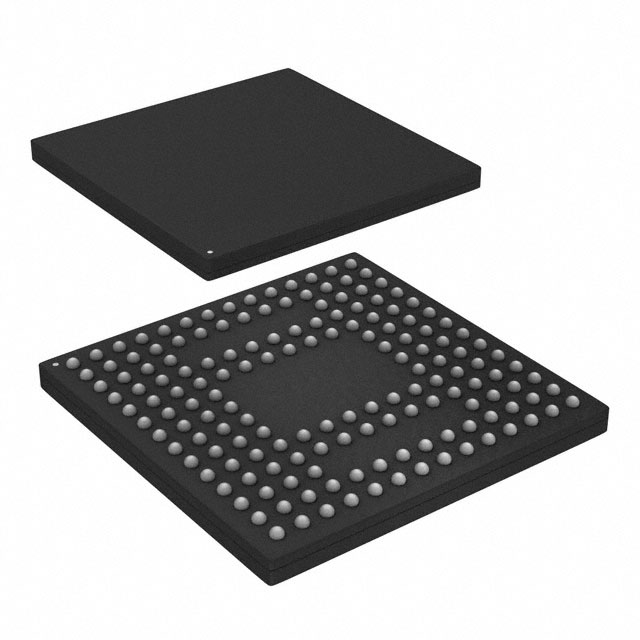

SCF5249VM140

NRND

Freescale Semiconductor - NXP

MCF5249 V2CORE 96KSRAM/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

NRND

Freescale Semiconductor - NXP

MCF5249 V2CORE 96KSRAM/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SCF5249VM140

Connectivity	Memory Card, UART/USART, SPI, I2C, IDE
Core Processor	ColdFire V2
Core Size	32-Bit Single-Core
Data Converters [custom]	12 b
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	47
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Oscillator Type	External
Package / Case	160-BGA
Peripherals	DMA, Serial Audio, WDT, I2S, POR
Program Memory Type	ROMless
RAM Size	96 K
Speed	140 MHz
Supplier Device Package	160-MAPBGA
Supplier Device Package [x]	15
Supplier Device Package [y]	15

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Core Size	Number of I/O	Speed	Mounting Type	Connectivity	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Peripherals	Core Processor	Program Memory Type	RAM Size
Freescale Semiconductor - NXP SCF5249VM140	70 °C	0 °C	160-BGA	32-Bit Single-Core	47	140 MHz	Surface Mount	I2C IDE Memory Card SPI UART/USART	External	12 b	4	15	160-MAPBGA	15	DMA I2S POR Serial Audio WDT	ColdFire V2	ROMless	96 K
Freescale Semiconductor - NXP SCF5249VF140	70 °C	-20 °C		32-Bit Single-Core	47	140 MHz	Surface Mount	I2C IDE Memory Card SPI UART/USART	External	12 b	4	15	160-MAPBGA	15	DMA I2S POR Serial Audio WDT	ColdFire V2	ROMless	96 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	630	$ 27.83
Newark	Each	1	$ 32.08

General part information

Coldfire V2 MCF524x Microcontroller IC 32-Bit Single-Core 140MHz ROMless 160-MAPBGA (15x15)
