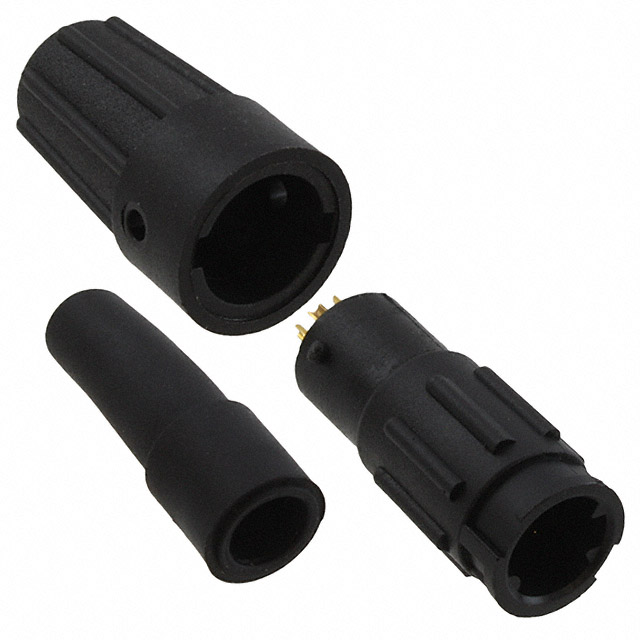

18282-3SG-318
ActiveConxall/Switchcraft
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18282-3SG-318
ActiveConxall/Switchcraft
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18282-3SG-318 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.05 | |
| 10 | $ 7.71 | |||
| 25 | $ 6.97 | |||
| 50 | $ 6.46 | |||
| 100 | $ 6.00 | |||
| 300 | $ 5.36 | |||
| 500 | $ 5.10 | |||
| 1000 | $ 4.76 | |||
Description
General part information
18282-3S Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
