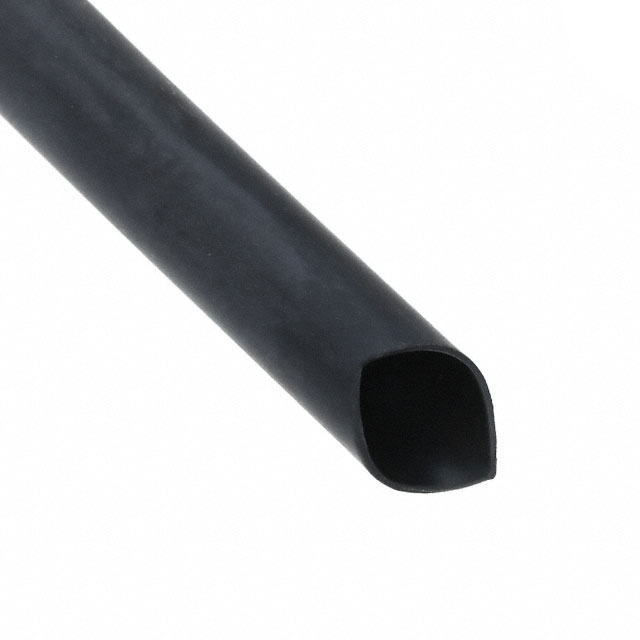

ZHTM-5/2.5-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK 0.197" BLACK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ZHTM-5/2.5-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK 0.197" BLACK METER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZHTM-5/2.5-0-SP

Color	Black
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Supplied [diameter]	5 mm
Inner Diameter - Supplied [diameter]	0.197 "
Length	Enter Number of Meters in Order Quantity
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrink Temperature	80 °C
Shrinkage Ratio	2 to 1
Spool Size	196.8 '
Spool Size	60 m
Type	Tubing, Flexible

ZHTM-3/1 Series

Part	Features	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size	Spool Size	Type	Recovered Wall Thickness	Recovered Wall Thickness	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Shrinkage Ratio	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine ZHTM-3/1.5-0-SP	Flame Retardant Fluid Resistant	80 °C	1.52 mm	0.06 in	Polyolefin (PO) Irradiated Halogen Free	1 m	3.28 ft	-30 ░C	105 ░C	196.8 '	60 m	Tubing Flexible	0.71 mm	0.028 "	Enter Number of Meters in Order Quantity	3 mm	0.118 in	Black	2 to 1	196.8 ft	60 m
TE Connectivity Aerospace, Defense and Marine ZHTM-24/12-0-SP	Flame Retardant Fluid Resistant	80 °C	12 mm	0.472 in	Polyolefin (PO) Irradiated Halogen Free	1 m	3.28 ft	-30 ░C	105 ░C	98.4 ft	30 m	Tubing Flexible	0.043 in		Enter Number of Meters in Order Quantity	24 mm	0.945 "	Black	2 to 1			1.09 mm
TE Connectivity Aerospace, Defense and Marine ZHTM-18/9-0-SP	Flame Retardant Fluid Resistant	80 °C	8.99 mm	0.354 in	Polyolefin (PO) Irradiated Halogen Free			-30 ░C	105 ░C	98.4 ft	30 m	Tubing Flexible	0.99 mm	0.039 in	Enter Number of Meters in Order Quantity	18.01 mm	0.709 in	Black	2 to 1
TE Connectivity Aerospace, Defense and Marine ZHTM-5/2.5-0-SP	Flame Retardant Fluid Resistant	80 °C			Polyolefin (PO) Irradiated Halogen Free	1 m	3.28 ft	-30 ░C	105 ░C	196.8 '	60 m	Tubing Flexible	0.76 mm		Enter Number of Meters in Order Quantity	5 mm	0.197 "	Black	2 to 1				0.03 "
TE Connectivity Aerospace, Defense and Marine ZHTM-40/20-0-SP	Flame Retardant Fluid Resistant	80 °C	19.96 mm	0.786 in	Polyolefin (PO) Irradiated Halogen Free	1 m 5 m	3.28 ft 16.4 ft	-30 ░C	105 ░C			Tubing Flexible	1.3 mm	0.051 in		1.575 "		Black	2 to 1					40.01 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 17.01
		2	$ 15.64
		3	$ 14.90
		5	$ 14.01
		7	$ 13.45
		10	$ 12.88
		25	$ 11.53
		50	$ 10.61
		100	$ 9.75

Description

General part information

ZHTM-3/1 Series

Heat Shrink Tubing, Flexible 0.197" (5.00mm) 2 to 1 Black Enter Number of Meters in Order Quantity
