82_MCX-75-0-5/111_NH

Active

Huber+Suhner, Inc.

RF COAX CONN, MCX, STRAIGHT JACK, 75 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

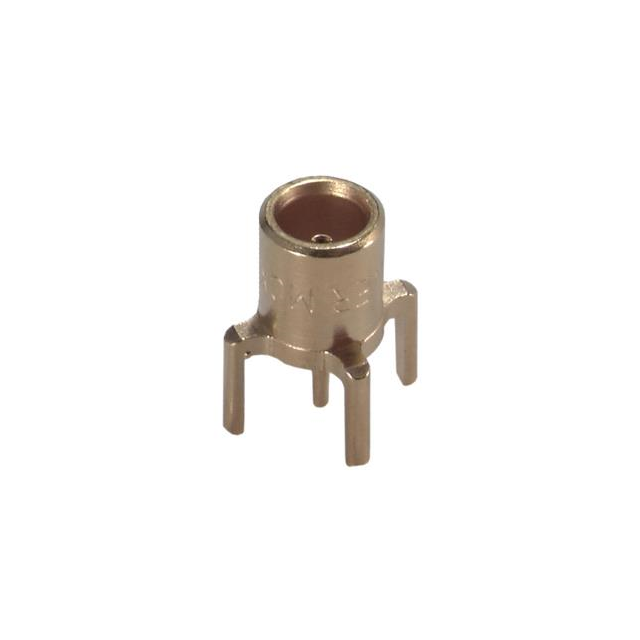

82_MCX-75-0-5/111_NH

Active

Huber+Suhner, Inc.

RF COAX CONN, MCX, STRAIGHT JACK, 75 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82_MCX-75-0-5/111_NH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

82_MCX Series

Part	Contact Termination	Frequency - Max [Max]	Housing Color	Voltage Rating	Center Contact Material	Connector Style	Fastening Type	Body Finish	Body Material	Mounting Type	Mating Cycles	Center Contact Plating	Dielectric Material	Impedance	Number of Ports	Connector Type	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]
Huber+Suhner, Inc. 82_MCX-50-0-19/111_NH-1	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
Huber+Suhner, Inc. 82_MCX-50-0-17/111_NH-1	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	165 °C	-65 ░C
Huber+Suhner, Inc. 82_MCX-S50-0-29/111_NE	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Surface Mount	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
Huber+Suhner, Inc. 82_MCX-S50-0-29/111_NH	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Surface Mount	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
Huber+Suhner, Inc. 82_MCX-S75-0-2/111_NE	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Board Edge Cutout Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	75 Ohms	1	Female Socket Jack	Solder	165 °C	-65 ░C
Huber+Suhner, Inc. 82_MCX-S50-0-22/111_NM	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Board Edge Cutout Surface Mount	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
Huber+Suhner, Inc. 82_MCX-75-0-5/111_NH	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	75 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
Huber+Suhner, Inc. 82_MCX-S75-0-2/111_NH	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Board Edge Cutout Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	75 Ohms	1	Female Socket Jack	Solder	165 °C	-65 ░C
Huber+Suhner, Inc. 82_MCX-50-0-10/111_NE	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	165 °C	-65 ░C
Huber+Suhner, Inc. 82_MCX-50-0-42/111_TH	Solder	6000 MHz	Gold	170 V	Beryllium Copper	MCX	Snap-On	Gold	Brass	Through Hole	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	1	Female Socket Jack	Solder	155 °C	-55 °C
