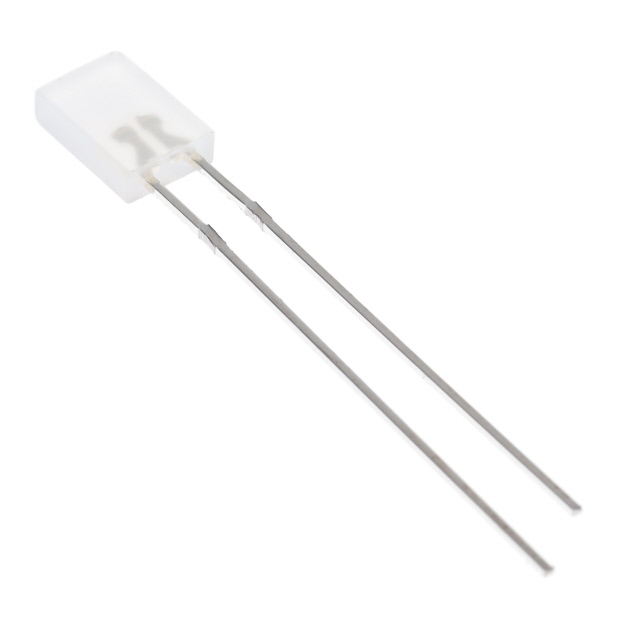

R5BC

Active

Bivar Inc.

LED, THROUGH HOLE, 2X5MM RECT, BI-COLOR, HE RED/GREEN, (625NM/568NM), (4MCD/3MCD), WHITE DIFFUSED LENS, 120 DEG VIEWING ANGLE /

Search across all available documentation for this part.

Active

Bivar Inc.

LED, THROUGH HOLE, 2X5MM RECT, BI-COLOR, HE RED/GREEN, (625NM/568NM), (4MCD/3MCD), WHITE DIFFUSED LENS, 120 DEG VIEWING ANGLE /

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Height (Max) [Max] [z]	Millicandela Rating	Current - Test	Color	Wavelength - Peak	Mounting Type	Lens Style	Lens Size [y]	Lens Size [x]	Viewing Angle	Configuration	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Millicandela Rating
Bivar Inc. R5BC	Diffused	7 mm	3 mcd 4 mcd	20 mA 20 mA	Green Red	568 nm 625 nm	Through Hole	Rectangle with Flat Top	1.9 mm	4.9 mm	120 °	Bidirectional	2 V 2.1 V	Radial	White
Bivar Inc. R5BC-3	Diffused	7 mm		20 mA 20 mA	Green Red	568 nm 625 nm	Through Hole	Rectangle with Flat Top	1.9 mm	4.9 mm	120 °	Common Cathode	2 V 2.1 V	Radial - 3 Leads	White	4mcd Green 4mcd Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.1V Green, 2V Red Radial
