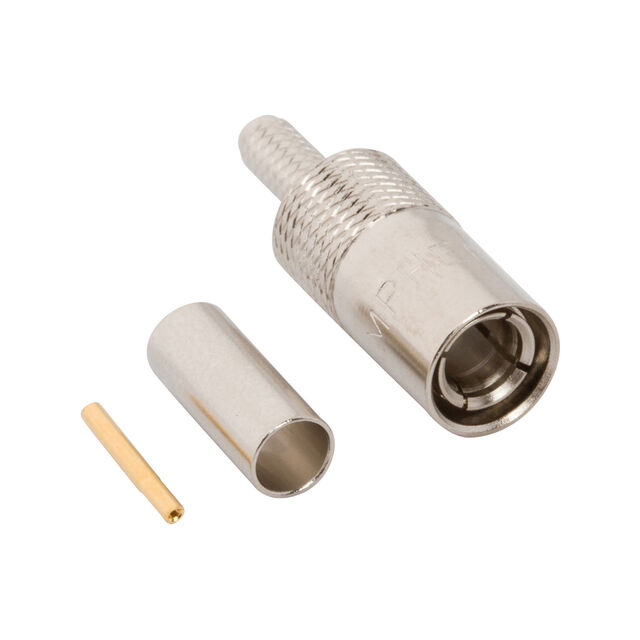

903-600P-71S

Active

Amphenol RF

MINI-SMB STRAIGHT CRIMP PLUG FOR

Search across all available documentation for this part.

Active

Amphenol RF

MINI-SMB STRAIGHT CRIMP PLUG FOR

Technical Specifications

Parameters and characteristics for this part

Specification	903-600P-71S

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Connector Type	Shield Termination	Insertion Loss	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Cable Group	Body Finish	Voltage Rating	Number of Ports	Mating Cycles	Fastening Type	Impedance	Body Material	Connector Style	Frequency - Max [Max]	Dielectric Material	Contact Termination	Housing Color	Mounting Type
Amphenol RF 903-600P-71S	Female Socket Plug	Crimp	0.3 dB	Gold	-65 ░C	165 °C	Beryllium Copper	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Nickel	335 V	1	500	Snap-On	75 Ohms	Brass	SMB	4 GHz	Polytetrafluoroethylene (PTFE)	Solder	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Solder
