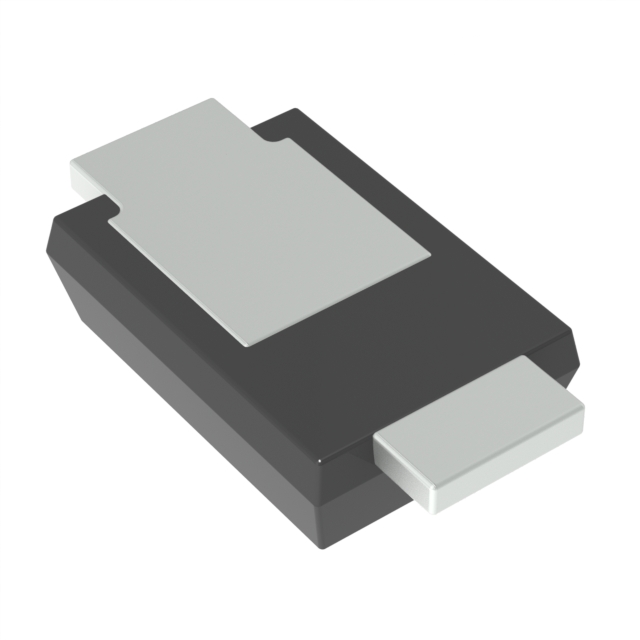

YFZVFHTR13B
ActiveRohm Semiconductor
500MW 13V, SOD-323HE, ZENER DIODE FOR AUTOMOTIVE
Deep-Dive with AI
Search across all available documentation for this part.
YFZVFHTR13B
ActiveRohm Semiconductor
500MW 13V, SOD-323HE, ZENER DIODE FOR AUTOMOTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YFZVFHTR13B |
|---|---|
| Current - Reverse Leakage @ Vr | 200 nA |
| Grade | Automotive |
| Impedance (Max) (Zzt) [Max] | 14 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 2-SMD, Flat Leads |
| Power - Max [Max] | 500 mW |
| Qualification | AEC-Q101 |
| Supplier Device Package | TUMD2M |
| Tolerance | 2.56 % |
| Voltage - Zener (Nom) (Vz) | 12.88 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.07 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.47 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.18 | |||
| 400 | $ 0.16 | |||
| 600 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
Description
General part information
YFZVFHTR13 Series
YFZVFH13B is Zener Diode for voltage regulation. Package is small power mold type and automatic mounting is possible by chip-mounter
