Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3100A-12S-3S |
|---|---|
| Applications | Industrial, Automotive |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Backshell |
| Insert Material | Diallyl Phthalate (DAP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium, Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 12S-3 |
| Shielding | Unshielded |
| Voltage Rating | 700 VDC, 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.53 | |
| 10 | $ 15.74 | |||
| 25 | $ 14.76 | |||
| 50 | $ 16.93 | |||
| 100 | $ 13.38 | |||
| 250 | $ 12.55 | |||
| 500 | $ 11.95 | |||
Description
General part information
97-3100A12 Series

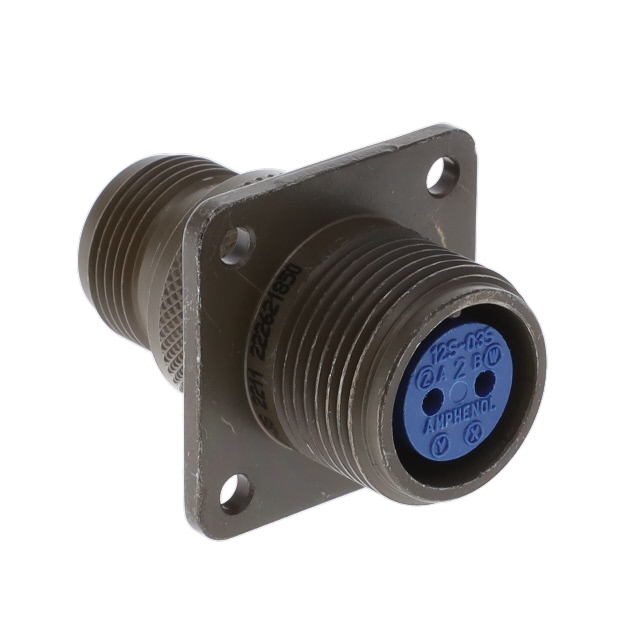

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
