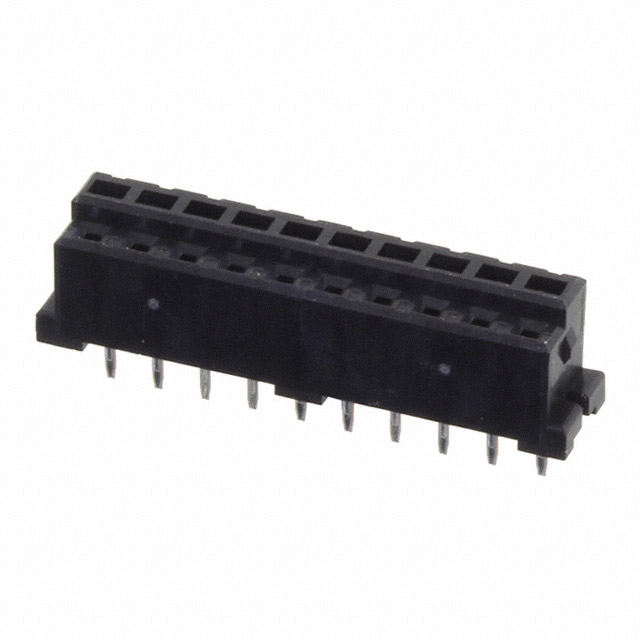

DF3-10S-2DSA(55)

LTB

Hirose Electric USA, Inc.

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3 Series Datasheet

DF3-10S-2DSA(55)

LTB

Hirose Electric USA, Inc.

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDF3 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-10S-2DSA(55)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights [z]	6.6 mm, 7.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

DF3-10S Series

Part	Contact Finish - Mating	Mated Stacking Heights [z]	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Style	Voltage Rating	Termination	Current Rating (Amps)	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Contact Material	Contact Finish - Post	Insulation Material	Contact Type	Connector Type	Contact Termination	Color	Note	Pitch [x]	Pitch [x]	Wire Gauge	Wire Type	Cable Termination	Features	Contact Finish	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. DF3-10S-2DSA(50)	Gold	6.6 mm 7.5 mm	Square	1	5.9 mm	0.232 in	UL94 V-0	All	Board to Board Cable	30 VAC	Solder	3 A	Black	0.118 in	3 mm	10	0.079 in	2 mm	-30 ░C	85 °C	Friction Lock	Through Hole	Phosphor Bronze	Tin	Nylon Polyamide (PA)	Female Socket	Receptacle
Hirose Electric USA, Inc. DF3-10S-2C				1												10			-55 °C	105 ░C		Free Hanging (In-Line)			Nylon Polyamide (PA)	Female Socket	Receptacle	Crimp	Black	Contacts Not Included	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-10S-2R28(05)				1												10						Free Hanging (In-Line)				Female Socket	Receptacle		Black		0.079 in	2 mm	28 AWG	Discrete	IDC	Closed End	Tin
Hirose Electric USA, Inc. DF3-10S-2DSA(20)		6.6 mm 7.5 mm	Square	1	5.9 mm	0.232 in	UL94 V-0	All	Board to Board Cable	30 VAC	Solder	3 A	Black	0.118 in	3 mm	10	0.079 in	2 mm	-30 ░C	85 °C	Friction Lock	Through Hole	Phosphor Bronze	Tin	Nylon Polyamide (PA)	Female Socket	Receptacle
Hirose Electric USA, Inc. DF3-10S-2DSA(55)	Gold	6.6 mm 7.5 mm	Square	1	5.9 mm	0.232 in	UL94 V-0	All	Board to Board Cable	30 VAC	Solder	3 A	Black	0.118 in	3 mm	10	0.079 in	2 mm	-30 ░C	85 °C	Friction Lock	Through Hole	Phosphor Bronze	Tin	Nylon Polyamide (PA)	Female Socket	Receptacle											1 çm	39.4 çin	0.203 Ám	8 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.92
		21	$ 1.55
		105	$ 1.38
		504	$ 1.23
		1008	$ 1.18
		5019	$ 1.05
		10017	$ 0.79

Description

General part information

DF3-10S Series

10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

DF3 Series Datasheet

Datasheet
