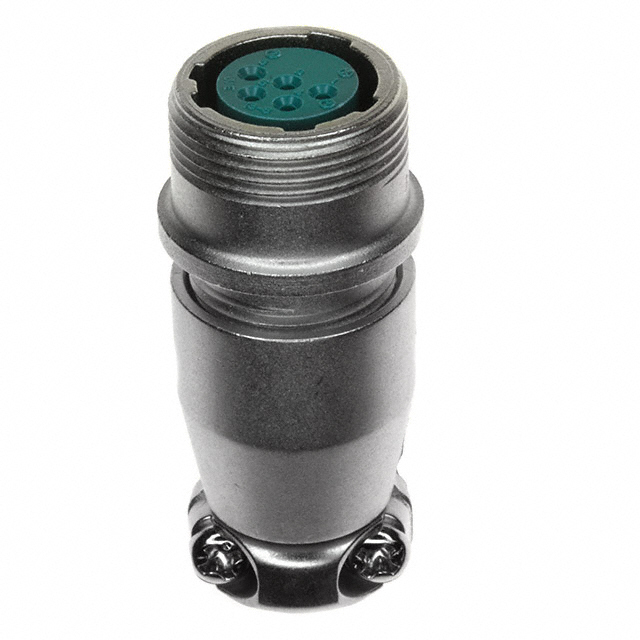

SRCN1A13-5S

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN1A13-5S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	0.335 in
Cable Opening [custom]	8.5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	13-5
Voltage Rating	350 V, 250 VAC

Part	Applications	Shell Size - Insert	Shell Finish	Backshell Material, Plating	Mounting Type	Voltage Rating	Material Flammability Rating	Shell Material	Contact Material	Color	Orientation	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Features	Insert Material	Current Rating (Amps)	Primary Material
JAE Electronics SRCN1A13-3S	Communication Systems Telecommunications Test Equipment & Measurement	13-3	Nickel	Aluminum Alloy Nickel	Free Hanging (In-Line)	250 VAC 350 V	UL94 V-0	Aluminum Alloy	Copper Alloy	Silver	N	Silver	Receptacle Female Sockets	-25 °C	85 °C	0.335 in	8.5 mm	Backshell Cable Clamp	Plastic	10 A	Metal
JAE Electronics SRCN1A13-3P	Communication Systems Telecommunications Test Equipment & Measurement	13-3	Nickel	Aluminum Alloy Nickel	Free Hanging (In-Line)	250 VAC 350 V	UL94 V-0	Aluminum Alloy	Copper Alloy	Silver	N	Silver	Male Pins Receptacle	-25 °C	85 °C	0.335 in	8.5 mm	Backshell Cable Clamp	Plastic	10 A	Metal
JAE Electronics SRCN1A13-5S	Communication Systems Telecommunications Test Equipment & Measurement	13-5	Nickel	Aluminum Alloy Nickel	Free Hanging (In-Line)	250 VAC 350 V	UL94 V-0	Aluminum Alloy	Copper Alloy	Silver	N	Silver	Receptacle Female Sockets	-25 °C	85 °C	0.335 in	8.5 mm	Backshell Cable Clamp	Plastic	5 A	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	72	$ 9.96

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
