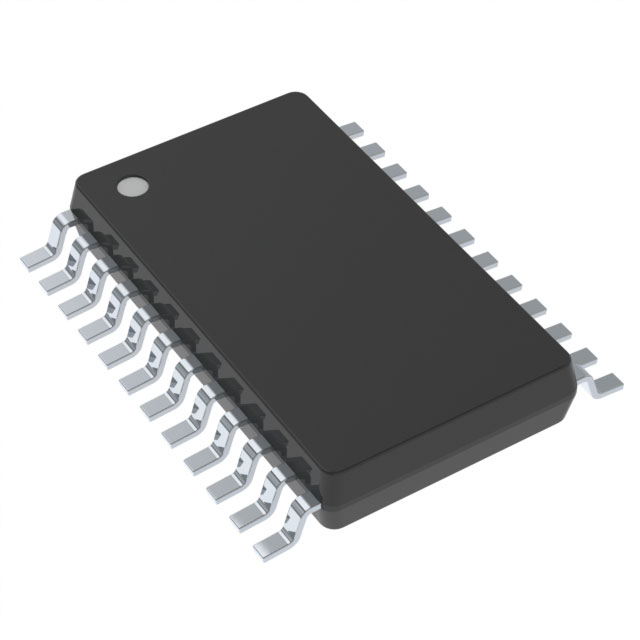

DS1318E+T&R
ActiveAnalog Devices Inc./Maxim Integrated
IC RTC ELAPSED CNT PAR 24TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DS1318E+T&R
ActiveAnalog Devices Inc./Maxim Integrated
IC RTC ELAPSED CNT PAR 24TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1318E+T&R |
|---|---|
| Current - Timekeeping (Max) | 150 µA |
| Date Format | Binary |
| Features | Alarm, Square Wave Output |
| Interface | Parallel |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-TSSOP |
| Package / Case | 0.173 in, 4.4 mm |
| Supplier Device Package | 24-TSSOP |
| Time Format | Binary |
| Type | Elapsed Time Counter |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
| Voltage - Supply, Battery [Max] | 3.7 V |
| Voltage - Supply, Battery [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.38 | |
| 10 | $ 5.76 | |||
| 25 | $ 5.08 | |||
| 100 | $ 4.32 | |||
| 250 | $ 3.96 | |||
| 500 | $ 3.73 | |||
| Digi-Reel® | 1 | $ 8.38 | ||
| 10 | $ 5.76 | |||
| 25 | $ 5.08 | |||
| 100 | $ 4.32 | |||
| 250 | $ 3.96 | |||
| 500 | $ 3.73 | |||
| Tape & Reel (TR) | 1000 | $ 3.25 | ||
| 2000 | $ 3.09 | |||
Description
General part information
DS1318 Series
Real Time Clock (RTC) IC Elapsed Time Counter Parallel 24-TSSOP (0.173", 4.40mm Width)
