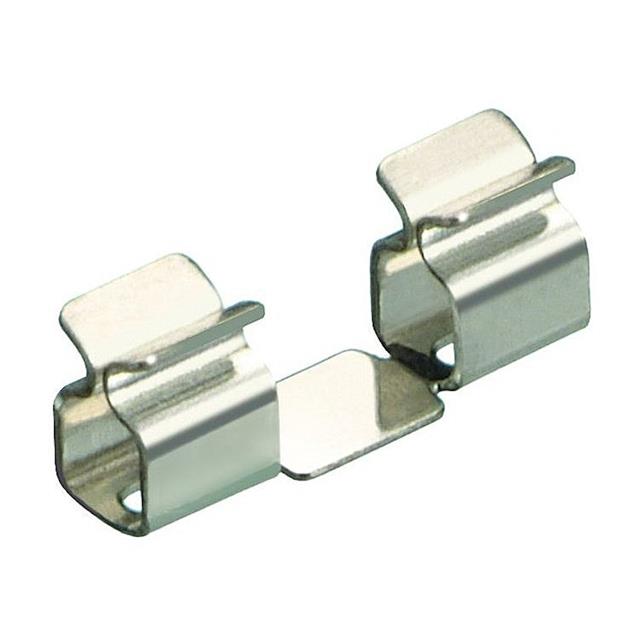

S1811-46R
ActiveHarwin Inc.
CONNECTOR ACCESSORY, RFI SHIELD CLIP, BERYLLIUM COPPER, 0.35 " X 0.1 " X 0.13 "
Deep-Dive with AI
Search across all available documentation for this part.
S1811-46R
ActiveHarwin Inc.
CONNECTOR ACCESSORY, RFI SHIELD CLIP, BERYLLIUM COPPER, 0.35 " X 0.1 " X 0.13 "
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S1811-46R |
|---|---|
| Height - Overall | 0.122 in |
| Height - Overall | 3.11 mm |
| Length - Overall [x] | 0.35 in |
| Length - Overall [x] | 8.89 mm |
| Width - Overall [x] | 3.1 mm |
| Width - Overall [x] | 0.122 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
S1811 Series
RF Shield 0.122" (3.10mm) X 0.350" (8.89mm)
