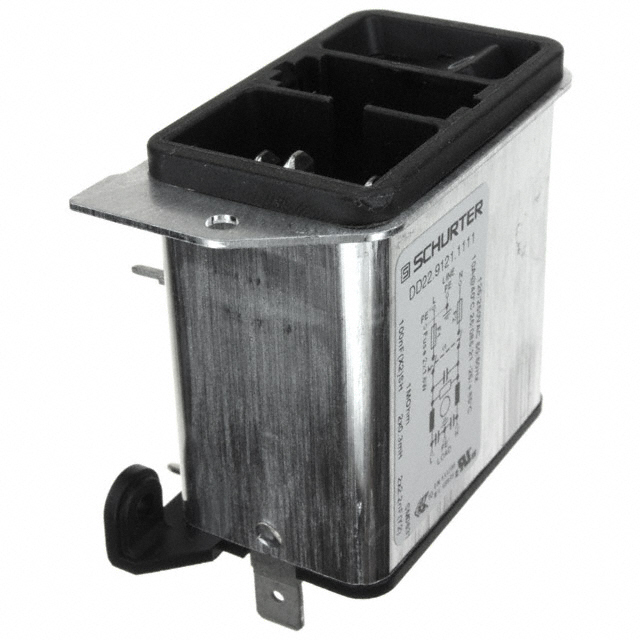

DD22.9121.1111

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD22.9121.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness	0.138 in
Panel Thickness	3.51 mm
Switch Features	Switch On-Off
Termination	Solder, Quick Connect - 0.250" (6.3mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Ingress Protection	Current Rating - Appliance Inlet	Material Flammability Rating	Current Rating - Filter	Voltage Rating - Appliance Inlet	Termination	Switch Features	Connector Type	Mounting Type	Panel Thickness	Panel Thickness	Accomodates a Fuse	Approval Agency	Fuse Holder, Drawer	Connector Style	Filter Type
SCHURTER Inc. DD22.9121.1111	IP40	10 A	UL94 V-0	10 A	250 VAC	Solder Quick Connect - 0.250" (6.3mm)	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Flange Through Hole Right Angle	0.138 in	3.51 mm		cULus ENEC	Drawer Sold Separate	IEC 320-C14	Filtered (EMI RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
