RCLAMP0522P.TCT
ActiveSemtech Corporation

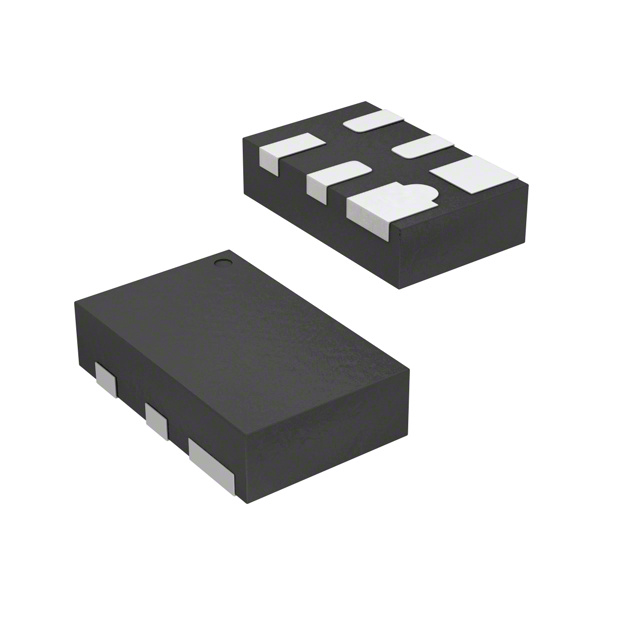

ESD PROTECTION DEVICE, 15 V, DFN1610, 6 PINS, 5 V, RAILCLAMP SERIES
Deep-Dive with AI
Search across all available documentation for this part.
RCLAMP0522P.TCT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 15 V, DFN1610, 6 PINS, 5 V, RAILCLAMP SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCLAMP0522P.TCT |
|---|---|
| Applications | HDMI |
| Capacitance @ Frequency | 0.8 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-UFDFN |
| Power - Peak Pulse | 150 W |
| Power Line Protection | True |
| Supplier Device Package | SLP1610P4 |
| Type | Steering |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
