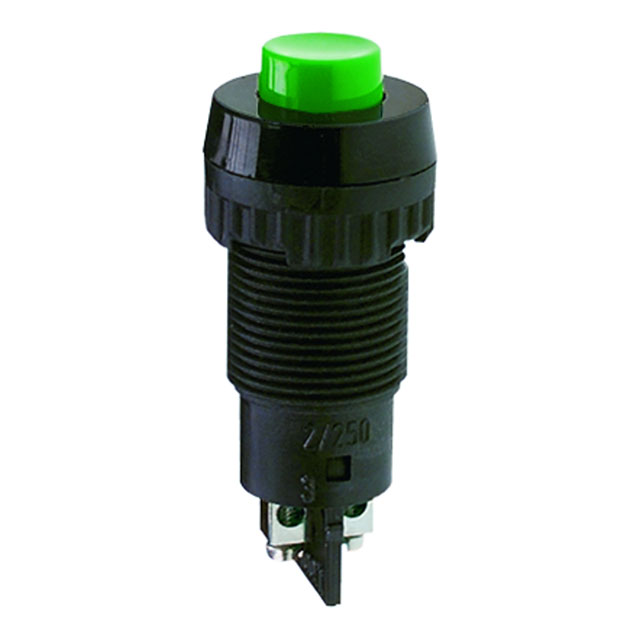

1.10.102.011/0301

Active

RAFI USA

SWITCH PUSH SPST-NC 2A 250V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NC 2A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.102.011/0301

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating (Amps)	2 A
Electrical Life	150000 Cycles
Ingress Protection	IP40
Mechanical Life	150000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	250 V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color - Actuator/Cap	Voltage Rating - AC	Current Rating (Amps)	Mechanical Life	Mounting Type	Switch Function	Circuit	Type	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Actuator Marking
RAFI USA 1.10.102.001/0205	150000 Cycles	-25 °C	85 °C	IP40	White	250 V	2 A	150000 Cycles	Panel Mount Front	Off-Mom	SPST-NO	Standard	16.2 mm	Screw Terminal	Button Round	No Marking
RAFI USA 1.10.102.011/0301	150000 Cycles	-25 °C	85 °C	IP40	Red	250 V	2 A	150000 Cycles	Panel Mount Front	On-Mom	SPST-NC	Standard	16.2 mm	Screw Terminal	Button Round	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front

Technical documentation and resources
