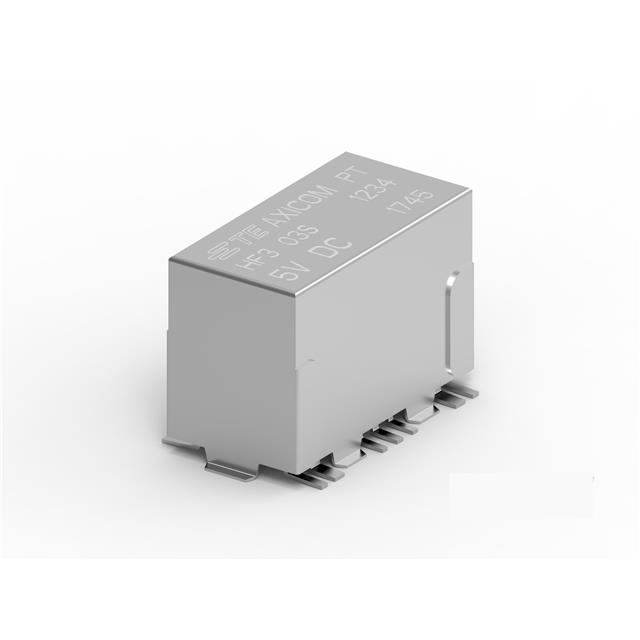

2-1462050-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY RF SPDT 2A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1462050-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY RF SPDT 2A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1462050-2 |
|---|---|
| Coil Resistance | 178 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Release Time | 5 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 400 | $ 15.50 | |
Description
General part information
2-1462050 Series
RELAY RF SPDT 2A 5V
