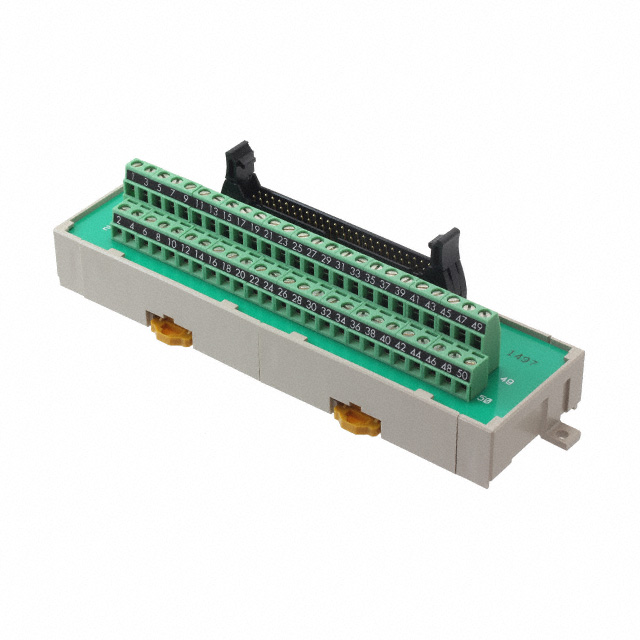

XW2B-50G4

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MOD HDR 50POS 16-22AWG

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MOD HDR 50POS 16-22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	XW2B-50G4

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	1 A
Length	157.51 mm
Length	6.201 in
Positions / Poles	50
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	125 VAC
Width	45 mm
Width [x]	1.772 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

Part	Current Rating (Per Contact)	Length [x]	Length [x]	Voltage - Rated	Control Side Cable Retainer	Width	Width [x]	Positions / Poles	Control Side Connection [custom]	Control Side Connection [custom]	Process Side Connection	Length	Length	Wire Gauge [Max]	Wire Gauge [Min]
Omron Electronics Inc-EMC Div XW2B-50G5	1 A	247.5 mm	9.744 in	125 VAC	Latches	45 mm	1.772 in	50	Male	Rectangular	Terminal Blocks - Screw Connection
Omron Electronics Inc-EMC Div XW2B-50Y4	1 A			125 VAC		45 mm	1.772 in	50	Male	Rectangular	Terminal Blocks - Screw Connection	157.51 mm	6.201 in	22 AWG	16 AWG
Omron Electronics Inc-EMC Div XW2B-50G4	1 A			125 VAC	Latches	45 mm	1.772 in	50	Male	Rectangular	Terminal Blocks - Screw Connection	157.51 mm	6.201 in	22 AWG	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 16-22 AWG
