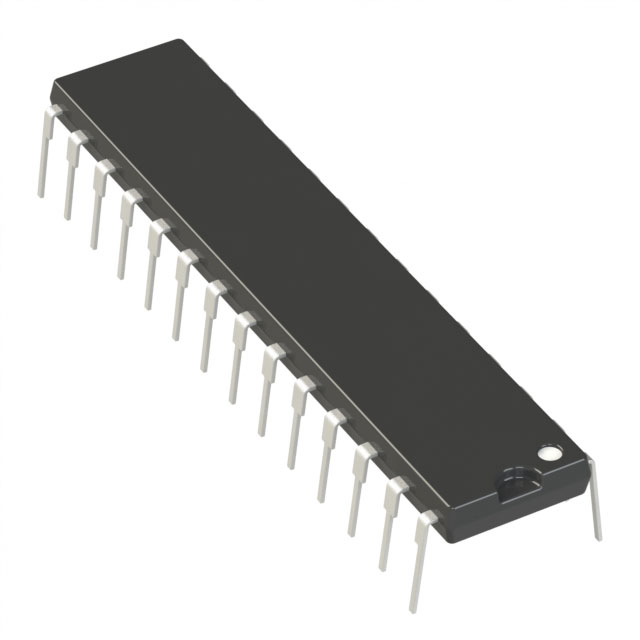

DSPIC33FJ64GP802-I/SP
ActiveMicrochip Technology
DIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 21 I/O'S, ECAN, I2C, SPI, UART, 2.75 V
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64GP802-I/SP
ActiveMicrochip Technology
DIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 21 I/O'S, ECAN, I2C, SPI, UART, 2.75 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64GP802-I/SP |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 10x10b/12b, D/A 2x16b |
| Mounting Type | Through Hole |
| Number of I/O | 21 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 0.3 in |
| Package / Case | 28-DIP |
| Package / Case | 7.62 mm |
| Peripherals | DMA, POR, PWM, I2S, DCI, WDT, Brown-out Detect/Reset |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 16 K |
| Speed | 40 MIPs |
| Supplier Device Package | 28-SPDIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.94 | |
| 25 | $ 6.36 | |||
| 100 | $ 5.76 | |||
| Microchip Direct | TUBE | 1 | $ 6.94 | |
| 25 | $ 6.36 | |||
| 100 | $ 5.76 | |||
| 1000 | $ 5.29 | |||
| 5000 | $ 5.05 | |||
| Newark | Each | 105 | $ 6.30 | |
| 255 | $ 5.99 | |||
Description
General part information
dsPIC33FJ64GP802 Series
•dsPIC33Fs are designed to execute digital filter algorithms
and high-speed precision digital control loops, ideal for applications that
need to perform under pressure •General
