CMLE105T-5R6MS

Active

Delta Electronics/Cyntec

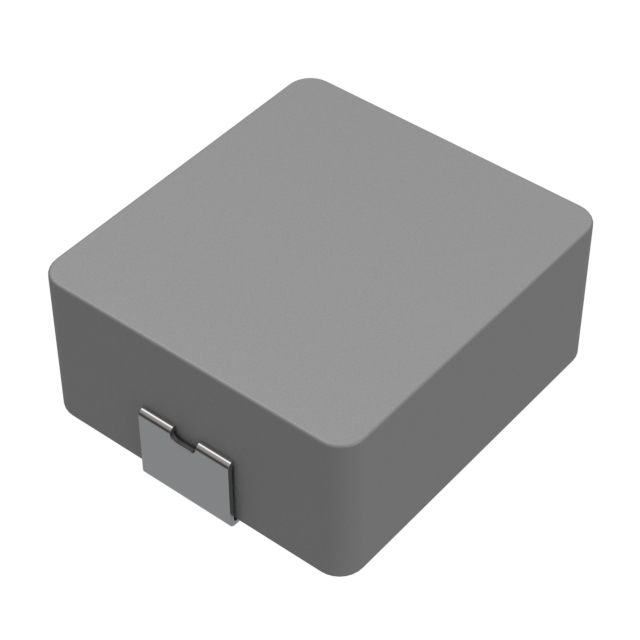

FIXED IND 5.6UH 10A 15 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLE105T-5R6MS

Active

Delta Electronics/Cyntec

FIXED IND 5.6UH 10A 15 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMLE105T-5R6MS

Current - Saturation (Isat)	13 A
Current Rating (Amps)	10 A
DC Resistance (DCR) [Max]	15 mOhm
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Inductance	5.6 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.427 "
Size / Dimension [x]	10.85 mm
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	20 %

CMLE105T Series

Part	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Material - Core	Inductance	Tolerance	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE105T-5R6MS	100 kHz	10 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.427 "	10.85 mm	Surface Mount	Nonstandard	0.197 in	5 mm	15 mOhm	13 A	Metal	5.6 µH	20 %
Delta Electronics/Cyntec CMLE105T-1R5MS	100 kHz	24 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.439 in	11.15 mm	Surface Mount	Nonstandard	0.197 in	5 mm	3 mOhm	30 A	Metal	1.5 µH	20 %
Delta Electronics/Cyntec CMLE105T-100MS	100 kHz	7.6 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.427 "	10.85 mm	Surface Mount	Nonstandard	0.197 in	5 mm	23 mOhm	11 A	Metal	10 µH	20 %
Delta Electronics/Cyntec CMLE105T-2R2MS	100 kHz	19.5 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.439 in	11.15 mm	Surface Mount	Nonstandard	0.197 in	5 mm	4.5 mOhm	26 A	Metal	2.2 µH	20 %
Delta Electronics/Cyntec CMLE105T-3R3MS	100 kHz	15 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.427 "	10.85 mm	Surface Mount	Nonstandard	0.197 in	5 mm		22 A	Metal	3.3 µH	20 %	7.5 mOhm
Delta Electronics/Cyntec CMLE105T-1R0MS	100 kHz	25.5 A	Shielded	-55 °C	125 °C	10 mm	0.394 in	0.439 in	11.15 mm	Surface Mount	Nonstandard	0.197 in	5 mm	2.5 mOhm	36 A	Metal	1 µH	20 %
Delta Electronics/Cyntec CMLE105T-6R8MS	100 kHz		Shielded	-55 °C	125 °C	10 mm	0.394 in	0.427 "	10.85 mm	Surface Mount	Nonstandard	0.197 in	5 mm			Metal	6.8 µH	20 %	16.3 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.48
		10	$ 1.25
		25	$ 1.14
		50	$ 1.07
		100	$ 0.89
		250	$ 0.82
	Digi-Reel®	1	$ 1.48
		10	$ 1.25
		25	$ 1.14
		50	$ 1.07
		100	$ 0.89
		250	$ 0.82
	Tape & Reel (TR)	500	$ 0.56

Description

General part information

CMLE105T Series

5.6 µH Shielded Inductor 10 A 15mOhm Max Nonstandard
