CFR50J3M9
ActiveTE Connectivity Passive Product

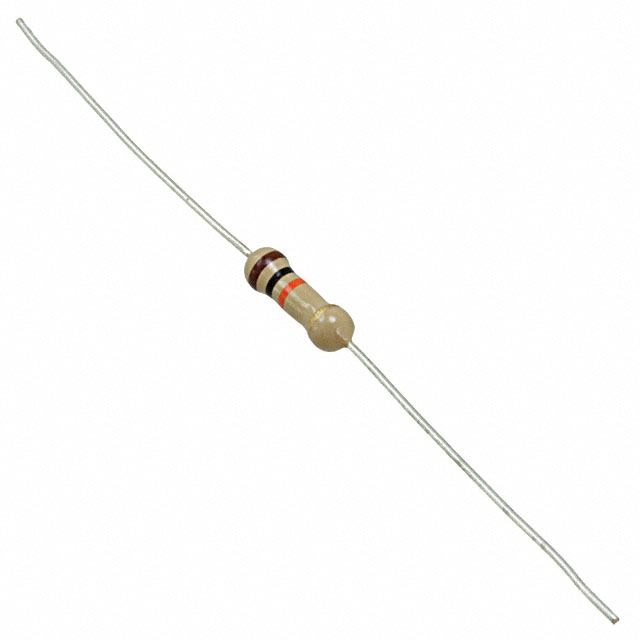

RES 3.9M OHM 5% 1/2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
CFR50J3M9
ActiveTE Connectivity Passive Product
RES 3.9M OHM 5% 1/2W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFR50J3M9 |
|---|---|
| Composition | Carbon Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 3.9 MOhms |
| Size / Dimension [diameter] | 3 mm |
| Size / Dimension [diameter] | 0.118 in |
| Size / Dimension [x] | 0.354 " |
| Size / Dimension [x] | 9 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient [Max] | 0 |
| Temperature Coefficient [Min] | -1500 ppm/°C |
| Tolerance | 5 % |
CFR50 Series
| Part | Supplier Device Package | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Tolerance | Resistance | Package / Case | Composition | Temperature Coefficient [Max] | Temperature Coefficient [Min] | Power (Watts) | Power (Watts) | Number of Terminations | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 10000 Ohms | Axial | Carbon Film | -450 ppm/°C | 0 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 10 MOhms | Axial | Carbon Film | 0 | -1500 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 15 Ohms | Axial | Carbon Film | -450 ppm/°C | 0 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 3.9 Ohms | Axial | Carbon Film | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | 350 ppm/°C | ||
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 150000 Ohms | Axial | Carbon Film | -700 ppm/°C | 0 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 560 kOhms | Axial | Carbon Film | -700 ppm/°C | 0 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 6.8 Ohms | Axial | Carbon Film | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | 350 ppm/°C | ||
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 68 kOhms | Axial | Carbon Film | -450 ppm/°C | 0 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 5.6 MOhms | Axial | Carbon Film | 0 | -1500 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C | |
TE Connectivity Passive Product | Axial | 0.354 " | 3 mm | 9 mm | 0.118 in | 5 % | 3.9 MOhms | Axial | Carbon Film | 0 | -1500 ppm/°C | 0.5 W | 0.5 W | 2 | 155 °C | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Tape & Box (TB) | 3000 | $ 0.01 | ||
| 6000 | $ 0.01 | |||
Description
General part information
CFR50 Series
3.9 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
