IQS316EV01-S

Obsolete

Azoteq Corporation

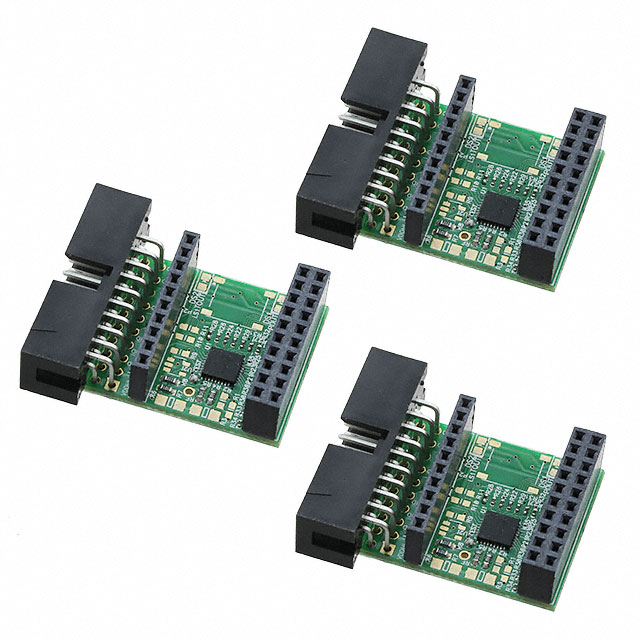

IQS316 EVALUATION KIT 1

Search across all available documentation for this part.

Obsolete

Azoteq Corporation

IQS316 EVALUATION KIT 1

Technical Specifications

Parameters and characteristics for this part

Part	Embedded	Supplied Contents	Interface	Sensor Type	Sensing Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Contents	Type	Proximity Detection	Current - Supply	Supplier Device Package	Mounting Type	Number of Inputs	Package / Case	Resolution	Operating Temperature [Max]	Operating Temperature [Min]
Azoteq Corporation IQS316EV01-S		Board(s)	I2C Serial SPI	Touch Capacitive	16 Megapixel	5.5 V	2.85 V	IQS316	Board(s)
Azoteq Corporation IQS316-0-QFR			I2C SPI			5.5 V	2.85 V			Button		670 µA	32-QFR (5x5)	Surface Mount	16	32-VFQFN Exposed Pad	8 b	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IQS316 - Touch, Capacitive Sensor Evaluation Board

Technical documentation and resources
