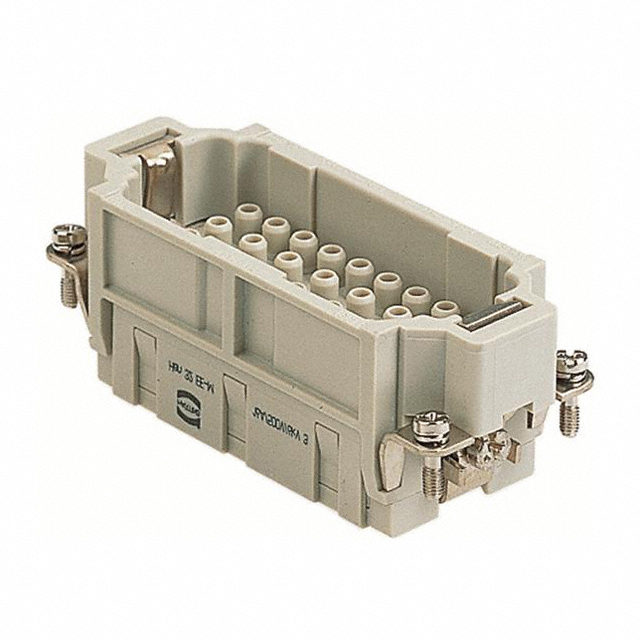

09320323011

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, CABLE MOUNT, PLUG, 64 CONTACTS, SOCKET, 4 ROWS

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, CABLE MOUNT, PLUG, 64 CONTACTS, SOCKET, 4 ROWS

Technical Specifications

Parameters and characteristics for this part

Specification	09320323011

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 B
Termination Style	Crimp
Voltage Rating	600 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Type	Connector Type	Voltage Rating	Gender	Size	Termination Style	Material Flammability Rating	Current Rating (Amps)	Color
HARTING Technology Group 09320323101	125 °C	-40 °C	Polycarbonate (PC)	Han®	Insert without Contacts	600 V	Female	16 B	Crimp	UL94 V-0	16 A	Gray
HARTING Technology Group 09320323011	125 °C	-40 °C	Polycarbonate (PC)	Han®	Insert without Contacts	600 V	Male	32 B	Crimp	UL94 V-0	16 A	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 32+Ground Position Crimp
