1672-20-1-0500-002-1-TS

Active

CnC Tech, LLC

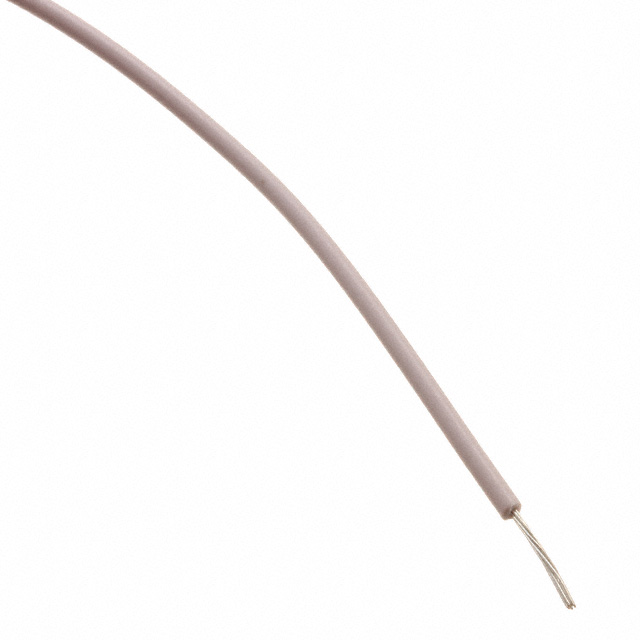

HOOK-UP WIRE 20AWG 152.4M 2.95MM TINNED COPPER WHITE 300V REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1672-20-1-0500-002-1-TS

Active

CnC Tech, LLC

HOOK-UP WIRE 20AWG 152.4M 2.95MM TINNED COPPER WHITE 300V REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1672-20-1-0500-002-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0071 in
Conductor Strand [custom]	21
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Length	15.24 m
Length [x]	30.5 m, 7.62 m
Length [x]	100 ft, 50 ft, 25 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 1672
Voltage	300 V
Wire Gauge	20 AWG

1672-20 Series

Part	Ratings	Length [x]	Length [x]	Length	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Voltage	Wire Gauge	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color
CnC Tech, LLC 1672-20-1-0500-002-1-TS	UL Style 1672	7.62 m 30.5 m	25 ft 50 ft 100 ft	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21
CnC Tech, LLC 1672-20-1-0500-007-1-TS	UL Style 1672	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Green
CnC Tech, LLC 1672-20-1-0500-003-1-TS	UL Style 1672	30.5 m 152.4 m	50 ft 100 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Yellow
CnC Tech, LLC 1672-20-1-0500-006-1-TS	UL Style 1672	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Brown
CnC Tech, LLC 1672-20-1-0500-004-1-TS	UL Style 1672	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Red
CnC Tech, LLC 1672-20-1-0500-005-1-TS	UL Style 1672	7.62 m 30.5 m	25 ft 50 ft 100 ft	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Blue
CnC Tech, LLC 1672-20-1-0500-001-1-TS	UL Style 1672	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Black
CnC Tech, LLC 1672-20-1-0500-011-1-TS	UL Style 1672	7.62 m 152.4 m	25 ft 50 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Green Yellow
CnC Tech, LLC 1672-20-1-0500-010-1-TS	UL Style 1672	7.62 m 152.4 m	25 ft 50 ft 500 '	15.24 m	Hook-Up	0.016 in	0.41 mm	Copper Tinned	300 V	20 AWG	Oil Resistant	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)	105 ░C	-10 °C	0.0071 in	21	Violet

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.01
Digikey	Spool	1	$ 8.15
		1	$ 14.55
		1	$ 25.48
		2	$ 13.82
		2	$ 7.76
		3	$ 23.78
		4	$ 7.37
		5	$ 12.95
		5	$ 22.74
		10	$ 6.91
		10	$ 12.29
		10	$ 21.56
		20	$ 6.56
		20	$ 11.71
		25	$ 20.26
		40	$ 6.25
		50	$ 10.99
		50	$ 19.21
		100	$ 18.30
		100	$ 10.48
		100	$ 5.86
		200	$ 9.97
		200	$ 5.59
		400	$ 5.32
		500	$ 16.99
		500	$ 9.46

Description

General part information

1672-20 Series

20 AWG Hook-Up Wire 21/0.0071" White 300V 100.0' (30.5m)
