M24308/23-65F

Active

Amphenol Positronic

DSUB CONN,STRAIGHT, SOCKET, CADM

Search across all available documentation for this part.

Active

Amphenol Positronic

DSUB CONN,STRAIGHT, SOCKET, CADM

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/23-65F

Color	Natural
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Termination	Solder
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	22 AWG

Part	Shell Size, Connector Layout	Mounting Type	Flange Feature	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Material	Contact Type	Dielectric Material	Number of Positions	Features	Color	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Shell Material, Finish	Material Flammability Rating	Current Rating (Amps)	Connector Style
Amphenol Positronic M24308/23-29F	5	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Receptacle Female Sockets	20 AWG	26 AWG	Gold	Copper Alloy	Signal	Polyester Glass Filled	50	Mounting Brackets	Natural	Solder	3	-55 °C	125 °C	0.283 in	7.2 mm	Steel Yellow Cadmium Plated	UL94 V-0	7.5 A	D-Sub
Amphenol Positronic M24308/23-65F		Panel Mount Through Hole	Housing/Shell (Unthreaded)	Receptacle Female Sockets	22 AWG	28 AWG	Gold	Copper Alloy	Signal	Polyester Glass Filled	78		Natural	Solder		-55 °C	125 °C			Steel Yellow Cadmium Plated	UL94 V-0	5 A	D-Sub High Density

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 203.11

General part information

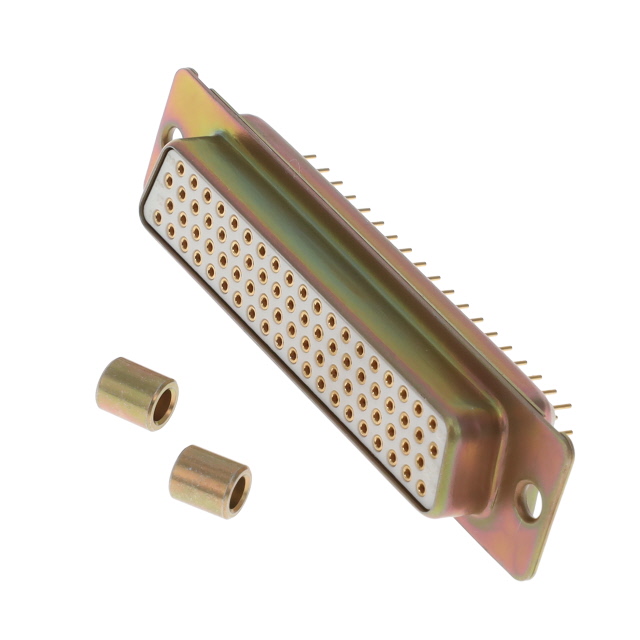

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
