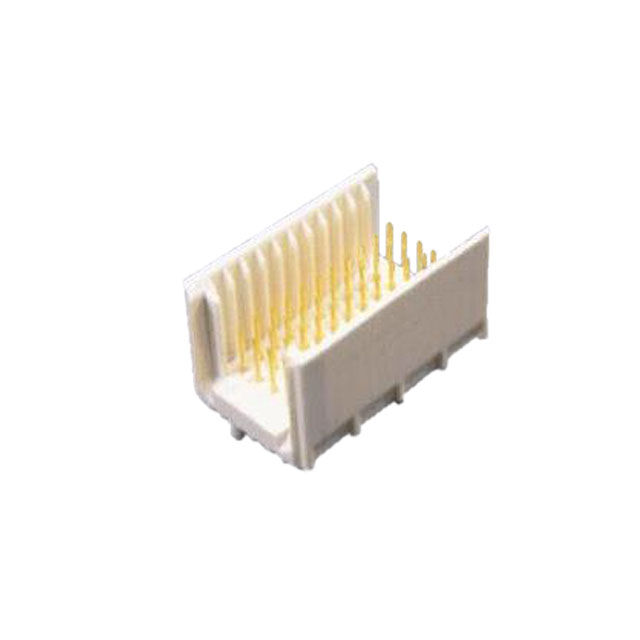

HM2P80PKF1H5GCLF

Active

Amphenol ICC (FCI)

CONN HEADER 77POS 2MM PRESS-FIT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-203 Other Related Document Datasheet +2

HM2P80PKF1H5GCLF

Active

Amphenol ICC (FCI)

CONN HEADER 77POS 2MM PRESS-FIT

Deep-Dive with AI

Documentsgs-12-203 Other Related Document Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HM2P80PKF1H5GCLF

Connector Style	CR 11
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Current Rating (Amps)	1.5 A
Features	Board Guide
Mounting Type	Through Hole
Number of Positions	55 positions, 22 positions
Number of Positions Loaded	All
Number of Rows	2, 5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

HM2P80 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Current Rating (Amps)	Number of Positions	Features	Termination	Voltage Rating	Connector Style	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions Loaded	Connector Type	Contact Finish Thickness
Amphenol ICC (FCI) HM2P80PKF1H5GFLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.76 Ám	30 Áin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PDA351N9LF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm			2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PMA3W1GFLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.76 Ám	30 Áin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PKF1H7GFLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm			2 5	All	Header Male Pins	Flash
Amphenol ICC (FCI) HM2P80PK5111GFLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.76 Ám	30 Áin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PDE121N9LF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm			2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PKF1H5GCLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.38 µm	15 µin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PKF1H5GC	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.38 µm	15 µin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PMA3W1GF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions	Board Guide	Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.76 Ám	30 Áin	2 5	All	Header Male Pins
Amphenol ICC (FCI) HM2P80PKF1H1GFLF	-55 °C	125 °C	Gold	Through Hole	1.5 A	22 positions 55 positions		Press-Fit	750 Vrms	CR 11	0.079 in	2 mm	0.76 Ám	30 Áin	2 5	All	Header Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HM2P80 Series

77 (55 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
