5920_N-50-6/133_NE

Active

Huber+Suhner, Inc.

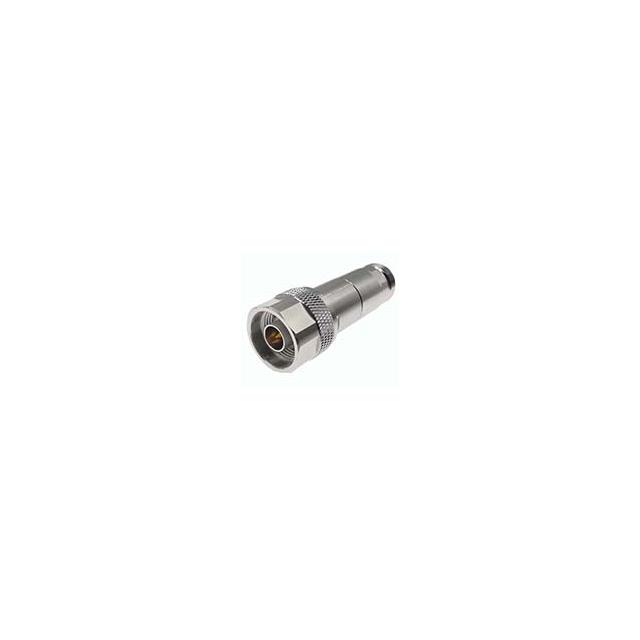

RF ATTENUATOR, N PLUG-JACK, 20DB ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF ATTENUATOR, N PLUG-JACK, 20DB ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Impedance	Package / Case	Frequency Range [Max]	Attenuation Value	Attenuation Value [custom]
Huber+Suhner, Inc. 6804_N-50-1/1--_NE	2 W	50 Ohms	N-Type In-Line Module	6 GHz	4 dB
Huber+Suhner, Inc. 5906.41.0001	10 W	50 Ohms	11.13mm In-Line Module	6 GHz		6 dB
Huber+Suhner, Inc. 5910_716-50-010/133_NE	10 W	50 Ohms	HEX In-Line Module	6 GHz	10 dB
Huber+Suhner, Inc. 6615_SMA-50-1/199_NE	2 W	50 Ohms	SMA In-Line Module	18 GHz		15 dB
Huber+Suhner, Inc. 5930_N-50-025/13-_NE	25 W	50 Ohms	Module	6 GHz		30 dB
Huber+Suhner, Inc. 5910_SMA-50-005/19-_NE	5 W	50 Ohms	SMA In-Line Module	18 GHz	10 dB
Huber+Suhner, Inc. 5910_N-50-1/133_NE	100 W	50 Ohms	Module	6 GHz	10 dB
Huber+Suhner, Inc. 5940_N-50-1/133_NE	100 W	50 Ohms	N-Type In-Line Module	6 GHz		40 dB
Huber+Suhner, Inc. 6604_SMA-50-1/199_NE	2 W	50 Ohms	SMA In-Line Module	18 GHz	4 dB
Huber+Suhner, Inc. 5920_N-50-6/133_NE	5 W	50 Ohms	N-Type In-Line Module	6 GHz	20 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Attenuators 20dB 0 Hz ~ 6 GHz 50 Ohms 5W N-Type In-Line Module

Technical documentation and resources
