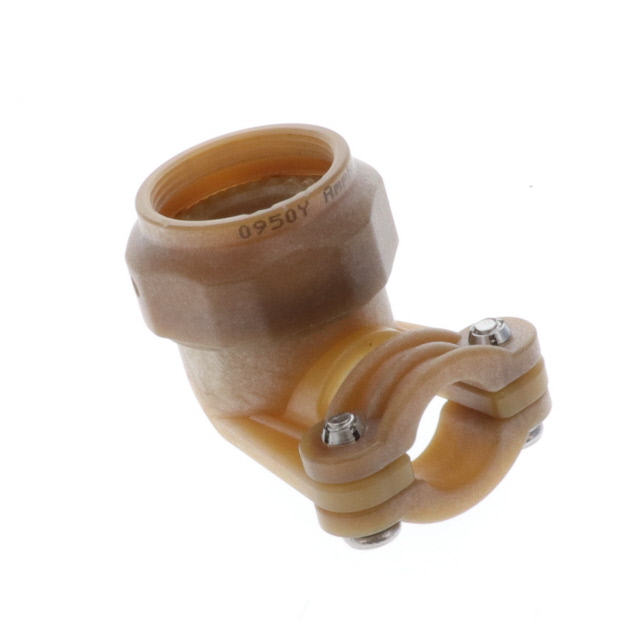

M85049/92-15T

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ15

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ15

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/92-15T

Cable Exit	90 °
Cable Opening [custom]	0.46 in
Cable Opening [custom]	11.68 mm
Diameter - Outside [diameter]	1.28 in
Diameter - Outside [diameter]	32.51 mm
Features	Clamp Screws, Detented
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 Cable Clamp, 2 Screws
Material	Composite
Plating	Bright Cadmium
Shell Size - Insert	15
Shielding	Unshielded
Type	Cable Clamp

Part	Cable Opening [custom]	Cable Opening [custom]	Features	For Use With/Related Products	Includes	Plating	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Exit	Shell Size - Insert	Material	Type
AMPHENOL PCD M85049/92-15T	0.46 in	11.68 mm	Clamp Screws Detented	MIL-DTL-38999 Series III IV	1 Cable Clamp 2 Screws	Bright Cadmium	Unshielded	1.28 in	32.51 mm	90 °	15	Composite	Cable Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cable Clamp 15
