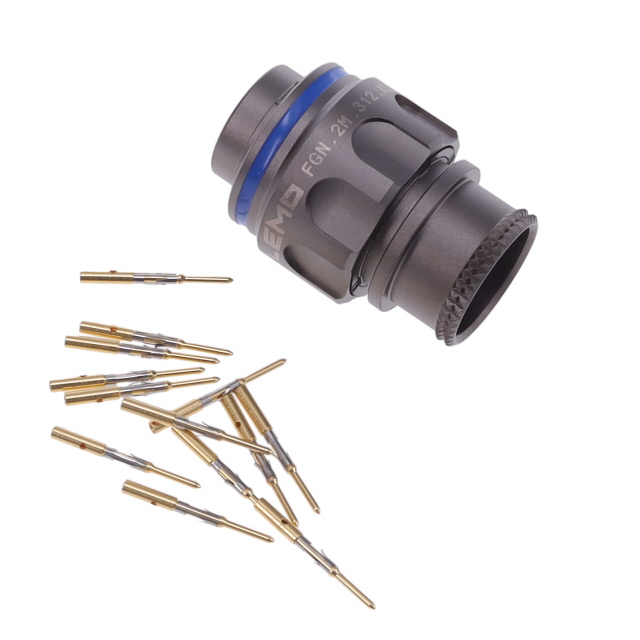

FGN.2M.312.XLCT

Active

LEMO

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGN.2M.312.XLCT

Active

LEMO

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGN.2M.312.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.512 in
Cable Opening [custom]	13 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	312
Shielding	Shielded
Termination	Crimp

FGN.2M Series

Part	Contact Finish - Mating	Termination	Features	Mounting Type	Number of Positions	Contact Material	Insert Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shell Size - Insert	Shell Finish	Applications	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Connector Type	Color	Shell Material	Shielding	Cable Opening [custom]	Cable Opening [custom]
LEMO FGN.2M.306.XRCT3	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	6	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	10.5 A 18 A	306	Nickel	Aerospace Automotive Aviation Military	13 mm	6.5 mm	0.512 in	0.256 in	Male Pins Plug	Gray	Aluminum Alloy	Shielded
LEMO FGN.2M.310.XRC8	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	10	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	6 A 23 A	310	Nickel	Aerospace Automotive Aviation Military	13 mm	6.5 mm	0.512 in	0.256 in	Male Pins Plug	Gray	Aluminum Alloy	Shielded
LEMO FGN.2M.310.XLCM	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	10	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	8 A	310	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded
LEMO FGN.2M.312.XLCM	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	12	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	7 A	312	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded
LEMO FGN.2M.319.XLC	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	19	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	4 A	319	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded	0.512 in	13 mm
LEMO FGN.2M.319.XLCM	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	19	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	4 A	319	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded
LEMO FGN.2M.319.XLCT	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	19	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	4 A	319	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded	0.512 in	13 mm
LEMO FGN.2M.312.XLCT	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	12	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	7 A	312	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded	0.512 in	13 mm
LEMO FGN.2M.310.XLBT	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	10	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	8 A	310	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded	0.512 in	13 mm
LEMO FGN.2M.308.XLCT	Gold	Crimp	Coupling Nut	Free Hanging (In-Line)	8	Brass	Polyetheretherketone (PEEK)	N	-55 °C	200 °C	IP68 - Dust Tight Waterproof	Metal	1 µm	39.4 µin	10 A	308	Nickel	Aerospace Automotive Aviation Military					Male Pins Plug	Gray	Aluminum Alloy	Shielded	0.512 in	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 168.33
		10	$ 131.53
		25	$ 119.90
		50	$ 112.07

Description

General part information

FGN.2M Series

12 Position Circular Connector Plug, Male Pins Crimp
