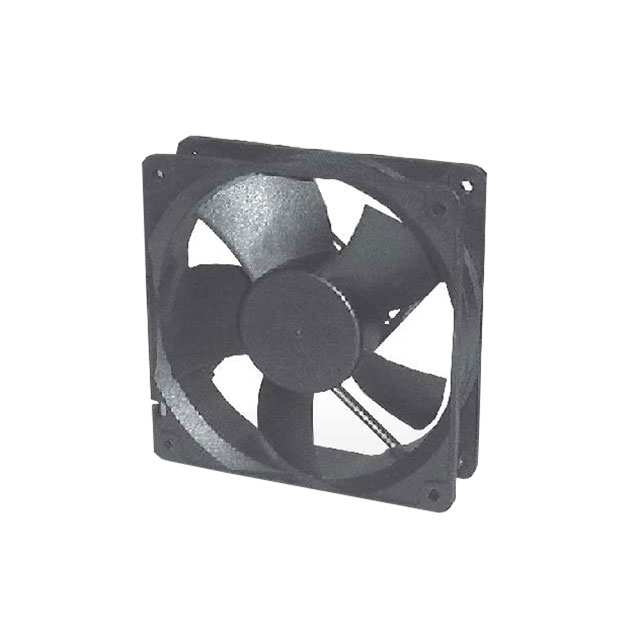

FAD1-12032EBHW12

Active

Qualtek

FAN AXIAL 120X32.3MM 48VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 120X32.3MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	RPM	Width [x]	Material - Frame	Approval Agency	Material - Blade	Bearing Type	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Air Flow	Air Flow	Fan Type	Current Rating (Amps)	Noise	Voltage - Rated [custom]
Qualtek FAD1-12032DBMW12	2 Wire Leads	24 VDC	70 °C	70 °C	-10 °C	-10 °C	3.84 W	120 mm	120 mm	2400 RPM	32.3 mm	Plastic	CE cURus TUV	Plastic	Ball	41.6 Pa	0.167 in H2O	21.6 VDC	26.4 VDC	212.73 g	0.469 lb	2.77 mł/min	99.1 CFM	Tubeaxial
Qualtek FAD1-12032EBHW12	2 Wire Leads		70 °C	70 °C	-10 °C	-10 °C	5.28 W	120 mm	120 mm	2750 RPM	32.3 mm	Plastic	CE cURus TUV	Plastic	Ball	60 Pa	0.241 in H2O	43.2 VDC	52.8 VDC	212.73 g	0.469 lb	3.13 mł/min	111.7 CFM	Tubeaxial	110 mA	43.3 dB(A)	48 VDC
Qualtek FAD1-12032CHJW12	2 Wire Leads	12 VDC	70 °C	70 °C	-10 °C	-10 °C	6.12 W	120 mm	120 mm	3200 RPM	32.3 mm	Plastic	CE cURus TUV	Plastic	Hydrodynamic	78.9 Pa	0.317 in H2O	10.8 VDC	13.2 VDC	212.73 g	0.469 lb	3.74 m³/min	133.4 CFM	Tubeaxial	0.51 A	48.4 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 111.7 CFM (3.13mł/min) 2 Wire Leads
