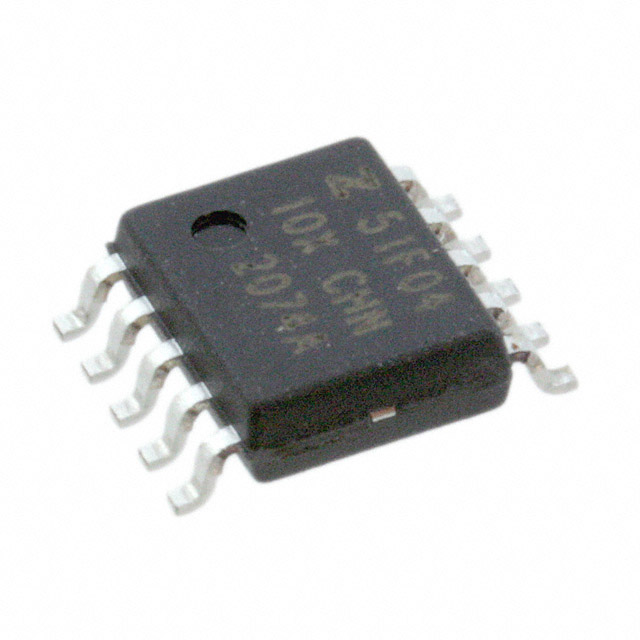

Z51F0410HCX
ObsoleteZilog
IC MCU 8BIT 4KB FLASH 10SOP
Deep-Dive with AI
Search across all available documentation for this part.
Z51F0410HCX
ObsoleteZilog
IC MCU 8BIT 4KB FLASH 10SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z51F0410HCX |
|---|---|
| Connectivity | UART/USART, I2C |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Data Converters [custom] | 12 b |
| Data Converters [custom] | 8 |
| EEPROM Size | 256 x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 10-SOP |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Speed | 8 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
Z51F0410 Series
8051 Z8051 Microcontroller IC 8-Bit 8MHz 4KB (4K x 8) FLASH
