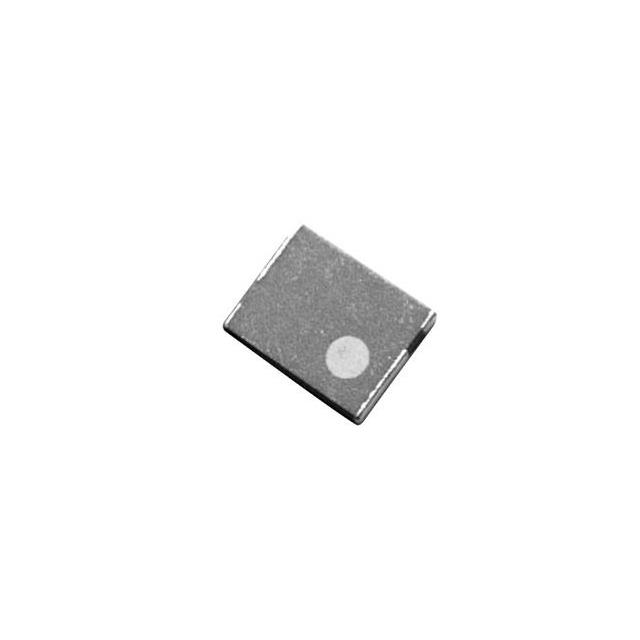

ANT8868LL00R1880A
ActivePulse Electronics
ANTENNA LFA OMNI 8.8X6.8MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT8868LL00R1880A
ActivePulse Electronics
ANTENNA LFA OMNI 8.8X6.8MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT8868LL00R1880A |
|---|---|
| Antenna Type | Chip |
| Frequency (Center/Band) | 1.94 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 2 GHz |
| Frequency Range [Min] | 1.88 GHz |
| Gain | 6.13 dBi |
| Height (Max) [Max] | 0.035 in |
| Height (Max) [Max] | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | 10 dB |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.58 | |
| 2000 | $ 0.54 | |||
| 5000 | $ 0.51 | |||
| 10000 | $ 0.49 | |||
Description
General part information
ANT8868 Series
RF ANTENNA Chip Solder Surface Mount
