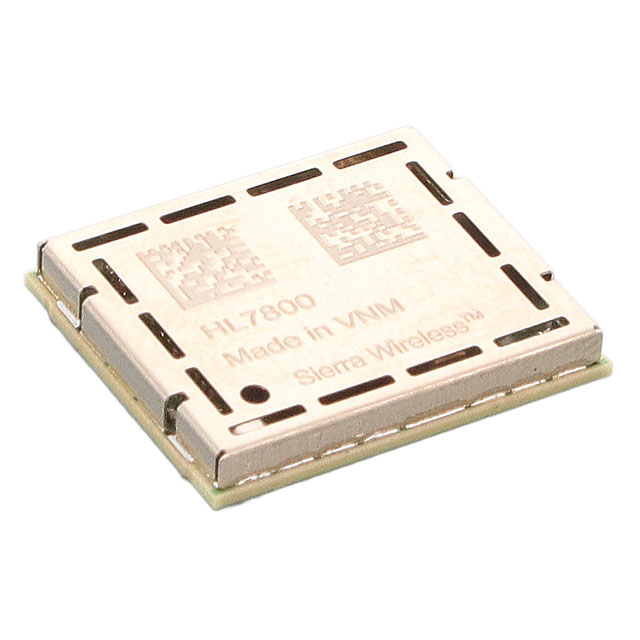

HL7800-M_1104150

Obsolete

Semtech Corporation

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Mounting Type	Protocol	Serial Interfaces	Package / Case	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]
Semtech Corporation HL7800_1104526	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation
Semtech Corporation HL7800-M_1104799	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation
Semtech Corporation HL7800_1104484	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation
Semtech Corporation HL7800-M_1104608	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation
Semtech Corporation HL7800-M_1104551	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation
Semtech Corporation HL7800-M_1104150	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	LTE	UART USB	86-LGA Module	Cellular	4.35 V	3.2 V
Semtech Corporation HL7800_1104755	Antenna Not Included	85 °C	-40 °C	375 kbps	Surface Mount	GNSS LTE	ADC GPIO UART USB	86-BFLGA Module	Cellular Navigation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular LTE Transceiver Module Antenna Not Included Surface Mount

Technical documentation and resources
