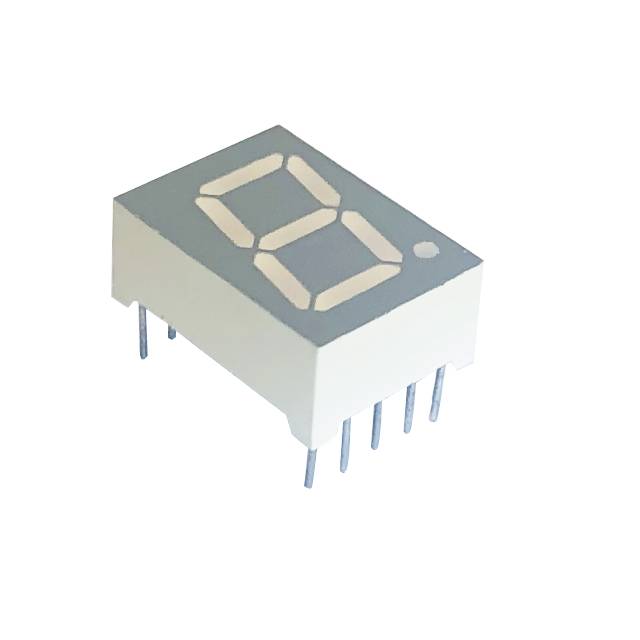

C521E G/W

Active

American Opto Plus LED

DISPLAY 7SEG 0.52" SGL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C521E G/W

Active

American Opto Plus LED

DISPLAY 7SEG 0.52" SGL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C521E G/W

Color	Orange-Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	13.2 mm
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	8 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.689 in
Size / Dimension [y]	0.488 "
Size / Dimension [y]	12.4 mm
Size / Dimension [z]	0.285 "
Size / Dimension [z]	7.25 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	630 nm

C521 Series

Part	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Wavelength - Peak	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Common Pin	Display Type
American Opto Plus LED C521E G/W	1	13.2 mm	0.52 in	0.6 in	15.24 mm	10-DIP	Orange-Red	0.285 "	17.5 mm	0.689 in	0.488 "	12.4 mm	7.25 mm	630 nm	75 mw	1.85 V	10 mA	8 mcd	Common Cathode	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C521 Series

Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 1.85V 10mA 0.689" H x 0.488" W x 0.285" D (17.50mm x 12.40mm x 7.25mm) 10-DIP (0.600", 15.24mm)
