7112N/2
Activeebm-papst Inc.

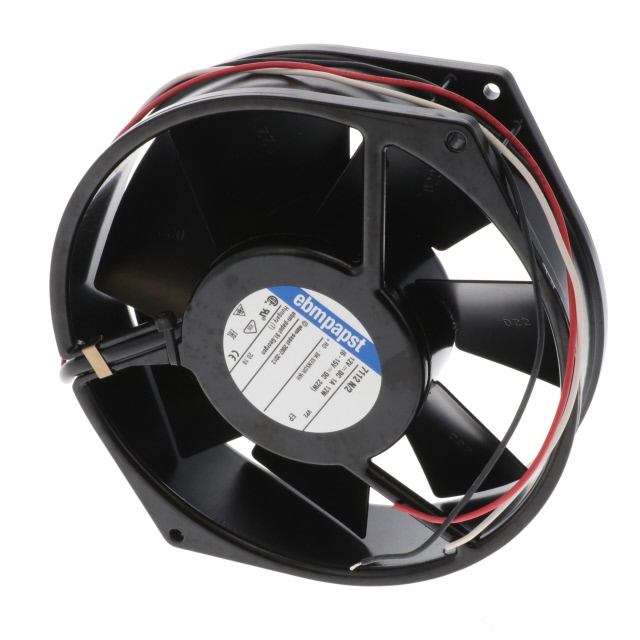

FAN AXIAL 150X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7112N/2
Activeebm-papst Inc.
FAN AXIAL 150X38MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7112N/2 |
|---|---|
| Air Flow | 212 CFM |
| Air Flow | 5.94 m³/min |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 72 °C |
| Operating Temperature [Max] | 162 °F |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 12 W |
| RPM | 2850 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 150 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 6 VDC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
7112N Series
Fan Tubeaxial 12VDC Round - 150mm Dia Ball 212.0 CFM (5.94m³/min) 3 Wire Leads
Documents
Technical documentation and resources
