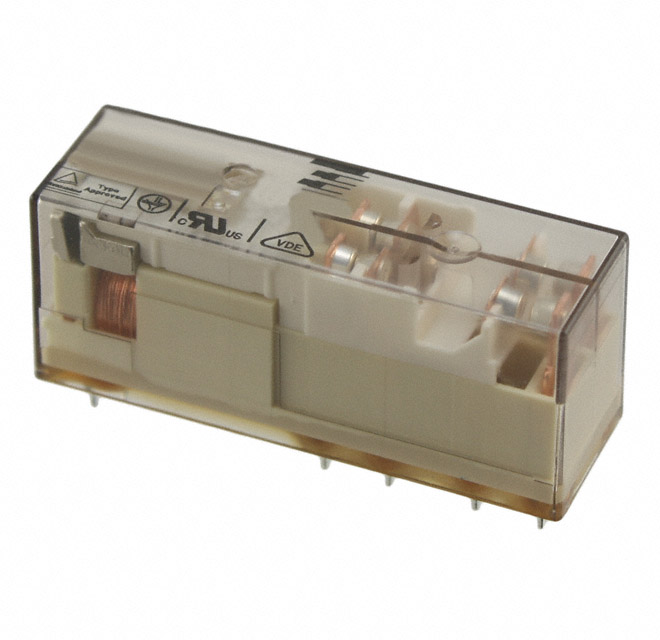

SR4M4085

Active

TE Connectivity Potter & Brumfield Relays

RELAY SAFETY 4PST 8A 85V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY SAFETY 4PST 8A 85V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Must Release Voltage	Contact Material	Termination Style	Coil Voltage	Must Operate Voltage	Coil Resistance	Contact Rating (Current)	Coil Power	Contact Form	Mounting Type	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Potter & Brumfield Relays SR4M4024	33.3 mA	2.4 VDC	Silver Tin Oxide (AgSnO)	PC Pin	24 VDC	18 VDC	720 Ohms	8 A	800 mW	4PST-3NO/1NC (3 Form A 1 Form B)	Through Hole	400 VAC	70 °C	-25 °C
TE Connectivity Potter & Brumfield Relays SR4M4021	38.1 mA	2.1 VDC	Silver Tin Oxide (AgSnO)	PC Pin	21 VDC	16 VDC	551 Ohms	8 A	800 mW	4PST-3NO/1NC (3 Form A 1 Form B)	Through Hole	400 VAC	70 °C	-25 °C
TE Connectivity Potter & Brumfield Relays SR4M4085	9.4 mA	8.5 VDC	Silver Tin Oxide (AgSnO)	PC Pin	85 VDC	63.8 VDC	9.03 kOhms	8 A	800 mW	4PST-3NO/1NC (3 Form A 1 Form B)	Through Hole	400 VAC	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 21.03

General part information

RELAY SAFETY 4PST 8A 85V
