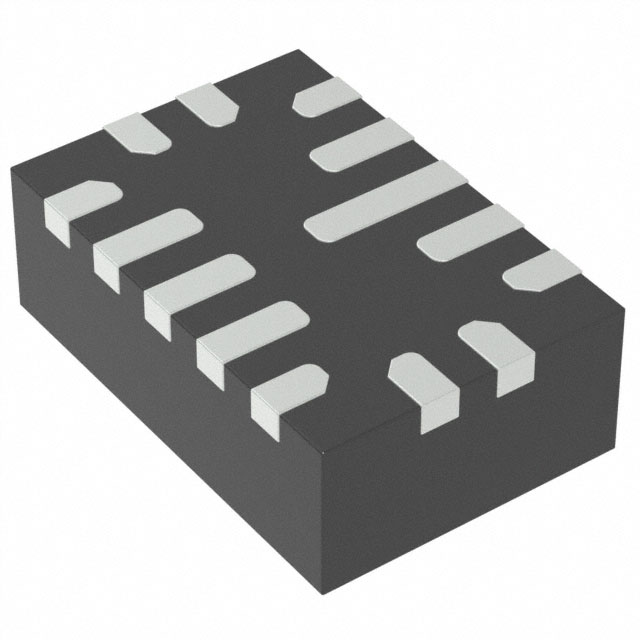

MPQ8626GD-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 6A 14QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ8626GD-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 6A 14QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ8626GD-Z |
|---|---|
| Current - Output | 6 A |
| Frequency - Switching [Max] | 2.2 MHz |
| Frequency - Switching [Min] | 600 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-VFQFN |
| Supplier Device Package | 14-QFN (2x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 2.85 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.99 | |
| 10 | $ 3.58 | |||
| 25 | $ 3.39 | |||
| 100 | $ 2.93 | |||
| 250 | $ 2.78 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 2.00 | |||
| Digi-Reel® | 1 | $ 3.99 | ||
| 10 | $ 3.58 | |||
| 25 | $ 3.39 | |||
| 100 | $ 2.93 | |||
| 250 | $ 2.78 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 2.00 | |||
| Tape & Reel (TR) | 5000 | $ 1.93 | ||
Description
General part information
MPQ8626 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 14-VFQFN
Documents
Technical documentation and resources
