1454 BK001

Active

ALPHA WIRE

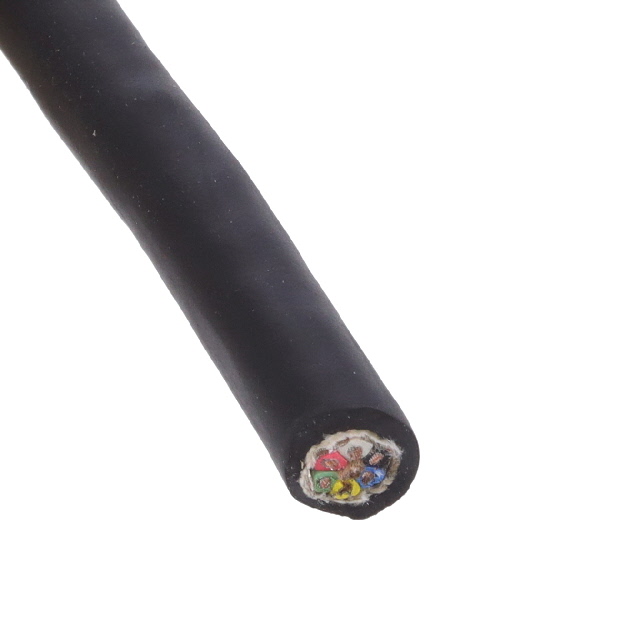

CABLE 6COND 18AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 18AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1454 BK001

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	9.96 mm
Jacket (Insulation) Diameter [diameter]	0.392 "
Jacket (Insulation) Material	Polychloroprene
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	18 AWG

Part	Usage	Length	Length	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Conductor Insulation	Wire Gauge	Shield Type	Shield Coverage	Shield Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material
ALPHA WIRE 1454 BK001	Communication Control	1000 ft	304.8 m	Black	6	9.96 mm	0.392 "	Multi-Conductor	41 strands	34 AWG	Copper Tinned	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	Braid	85 %	Copper Tinned	600 V	1.143 mm	0.045 in	-20 C	60 °C	Polychloroprene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Conductor Multi-Conductor Cable Black 18 AWG Braid 1000.0' (304.8m)
