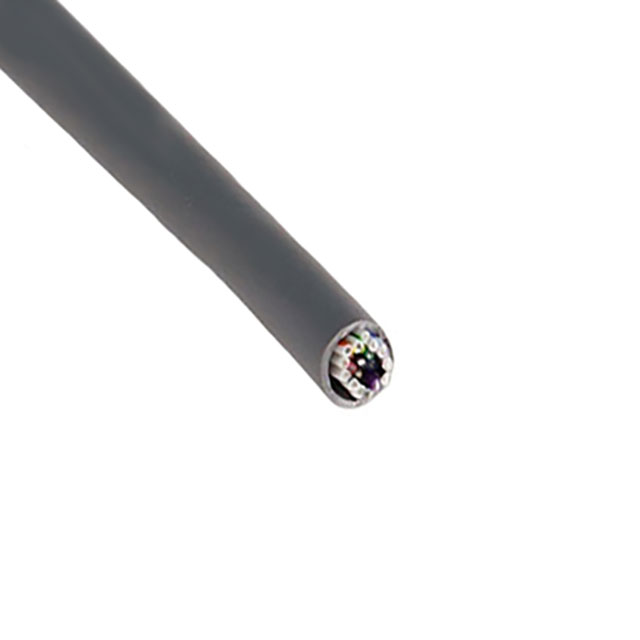

M4612 SL005

Active

ALPHA WIRE

CABLE 20COND 24AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 20COND 24AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4612 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.301 in
Jacket (Insulation) Diameter [diameter]	7.65 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Voltage	Shield Type	Jacket Color	Conductor Insulation	Cable Type	Features	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Length [x]	Length [x]	Shield Material	Ratings	Conductor Material	Jacket (Insulation) Material
ALPHA WIRE M4612 SL005	300 V	Foil	Slate	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Drain Wire Rip Cord	24 AWG	0.301 in	7.65 mm	20	32 AWG	7	-20 C	80 C	100 %	30.5 m	100 ft	Aluminum	UL Style 2464	Copper Tinned	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
