Technical Specifications
Parameters and characteristics for this part

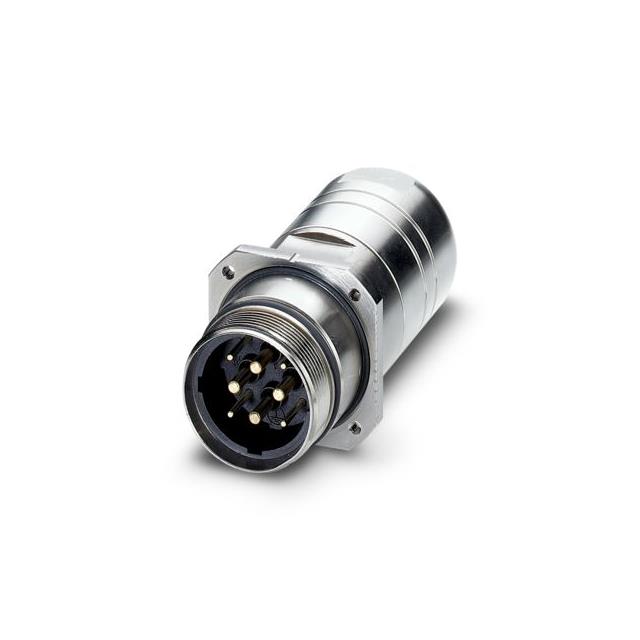

| Specification | 1607057 |
|---|---|
| Contact Finish | Gold |
| Contact Size | 3.6 mm |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm˛ [Max] | 2.5 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 1 mm˛ |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SM Series
Basic / Snap Action Switches Subminiature Basics
Documents
Technical documentation and resources
