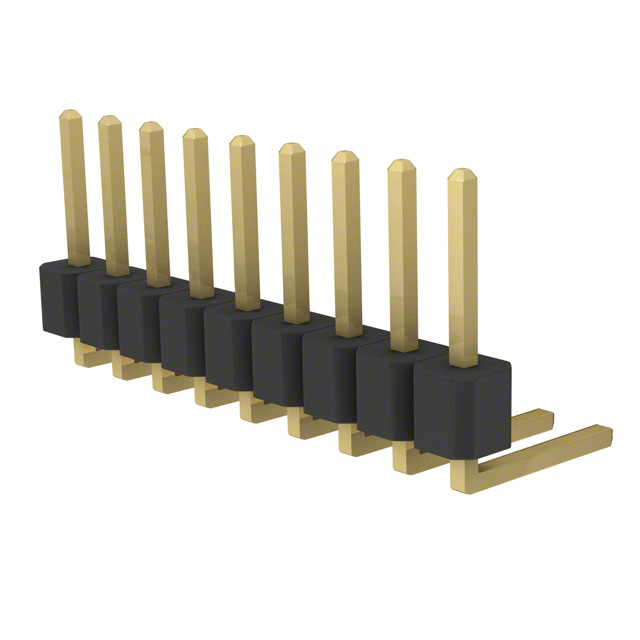

PRPC009SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC009SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC009SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC009 Series

Part	Insulation Material	Contact Shape	Termination	Style	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Shrouding	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Material Flammability Rating	Contact Finish - Post	Fastening Type	Contact Type	Number of Positions	Contact Material	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PRPC009SBCN-M71RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	1	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	9	Brass	Black	Through Hole Right Angle	Flash	0.098 in	2.5 mm	-40 °C	105 ░C	0.32 in	8.13 mm	Flash	0.1 in	2.54 mm	3 A
Sullins Connector Solutions PRPC009SACN-RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	1	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	9	Brass	Black	Through Hole	Flash	0.098 in	2.5 mm	-40 °C	105 ░C	0.32 in	8.13 mm	Flash	0.1 in	2.54 mm	3 A	16.47 mm	0.648 in
Sullins Connector Solutions PRPC009DBAN-M71RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	2	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	18	Brass	Black	Through Hole Right Angle	Flash			-40 °C	105 ░C	0.12 in	3.05 mm	Flash	0.1 in	2.54 mm	3 A			2.54 mm	0.1 in	0.197 in	5 mm
Sullins Connector Solutions PRPC009SBBN-M71RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	1	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	9	Brass	Black	Through Hole Right Angle	Flash	0.098 in	2.5 mm	-40 °C	105 ░C			Flash	0.1 in	2.54 mm	3 A							0.22 in	5.58 mm
Sullins Connector Solutions PRPC009DFAN-RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.318 "		2	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	18	Brass	Black	Through Hole	Flash	0.098 in	2.5 mm	-40 °C	105 ░C	0.12 in	3.05 mm	Flash	0.1 in	2.54 mm	3 A	0.537 "		2.54 mm	0.1 in					8.08 mm	13.63 mm
Sullins Connector Solutions PRPC009DABN-RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	2	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	18	Brass	Black	Through Hole	Flash	0.098 in	2.5 mm	-40 °C	105 ░C			Flash	0.1 in	2.54 mm	3 A	14.18 mm	0.558 in	2.54 mm	0.1 in			0.23 in	5.84 mm
Sullins Connector Solutions PRPC009DAAN-RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.23 in	5.84 mm	2	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	18	Brass	Black	Through Hole	Flash	0.098 in	2.5 mm	-40 °C	105 ░C	0.12 in	3.05 mm	Flash	0.1 in	2.54 mm	3 A	11.39 mm	0.448 in	2.54 mm	0.1 in
Sullins Connector Solutions PRPC009SFAN-RC	Polybutylene Terephthalate (PBT)	Square	Solder	Board to Board Cable	0.318 "		1	Unshrouded	All	Gold	Breakaway Header	UL94 V-0	Gold	Push-Pull	Male Pin	9	Brass	Black	Through Hole	Flash	0.098 in	2.5 mm	-40 °C	105 ░C	0.12 in	3.05 mm	Flash	0.1 in	2.54 mm	3 A	0.537 "								8.08 mm	13.63 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.51
		100	$ 0.39
		500	$ 0.32
		1000	$ 0.30
		5000	$ 0.25
		10000	$ 0.25

Description

General part information

PRPC009 Series

Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)
