233084-06
ActiveQualtek
CORD 18AWG NEMA5-15P - IEC320 8'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
233084-06
ActiveQualtek
CORD 18AWG NEMA5-15P - IEC320 8'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 233084-06 |
|---|---|
| 1st Connector | NEMA 5-15P |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Gray |
| Cord Type | SJT |
| Current Rating (Amps) | 10 A |
| Features | Hospital Grade |
| Length [x] | 2.44 m |
| Length [x] | 8 ft |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
233084 Series

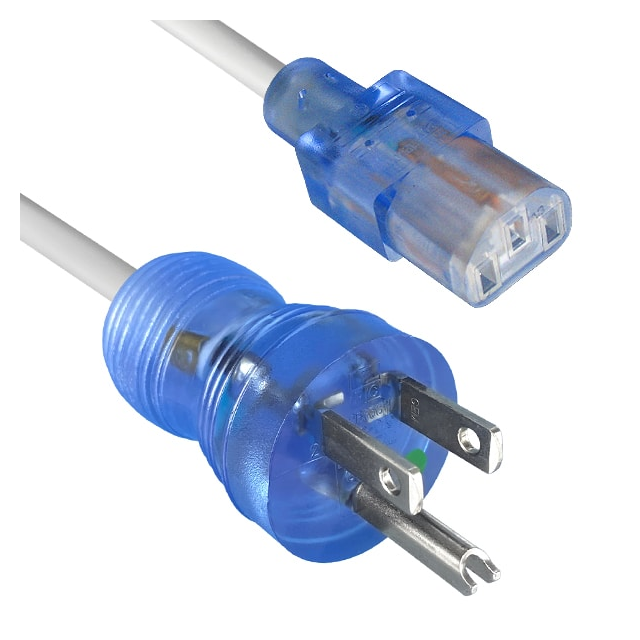

8.00' (2.44m) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT
Documents
Technical documentation and resources
