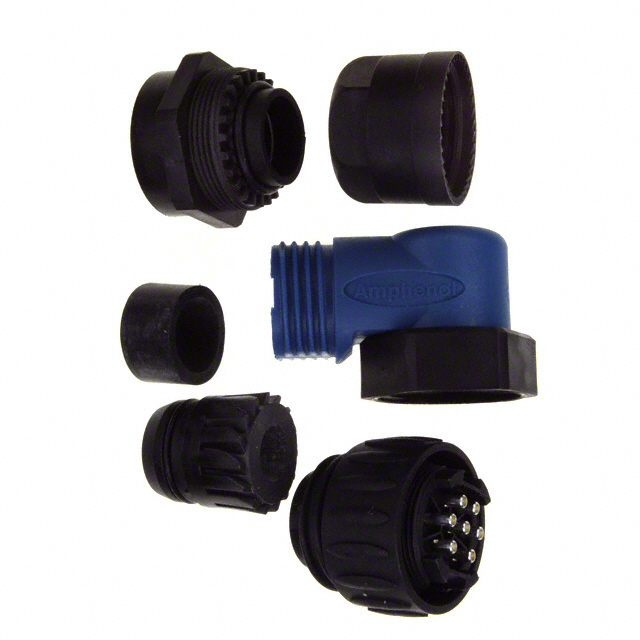

C01630K00610010

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 7POS SILVER SLDR

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 7POS SILVER SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	C01630K00610010

Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	12 A
Features	Cable Clamp
Ingress Protection	IP67, IP65
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features	Orientation	Mounting Type	Ingress Protection	Current Rating (Amps)	Voltage Rating	Primary Material	Connector Type
Amphenol Tuchel Industrial C01630K00610010	Silver	Solder	125 °C	-40 °C	7	Cable Clamp	Keyed	Free Hanging (In-Line) Right Angle	IP65 IP67	12 A	250 VDC	Plastic	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Male Pins Solder
