Q-3E04M000D024I

Active

Amphenol Custom Cable

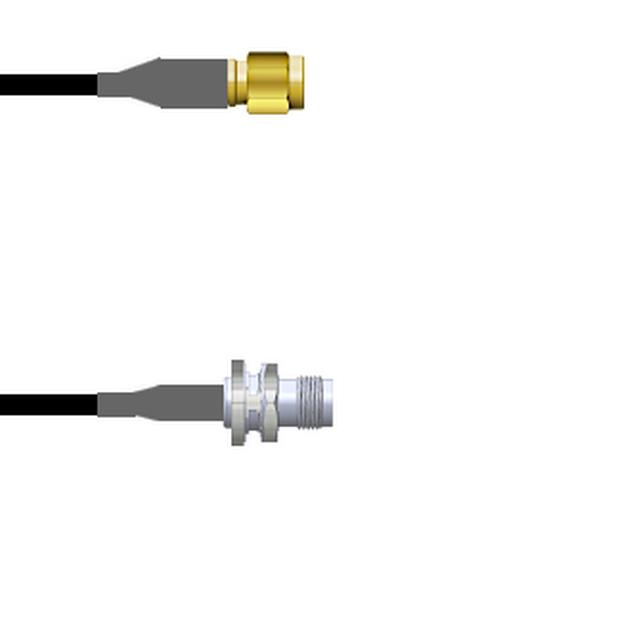

CBL ASSY SMA-TNC PLUG-JACK 24"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-JACK 24"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3E04M000D024I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 195
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Overall Impedance	1st Connector	Length	Length	2nd Connector Mounting Feature	2nd Contact Gender	2nd Connector	Cable Type	Frequency - Max [Max]	Features	Cable Impedance	1st Connector Mounting Type	Color	1st Contact Gender	Style	Connector Impedance	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-3E04M000D024I	50 Ohms	SMA Plug	24 "	609.6 mm	Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3E04M000D036I	50 Ohms	SMA Plug	36 in	91.44 cm	Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3E04M000D108I	50 Ohms	SMA Plug	108 in	2.7 m	Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount	9 ft
Amphenol Custom Cable Q-3E04M000D018I	50 Ohms	SMA Plug			Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount		457.2 mm	457.2 mm
Amphenol Custom Cable Q-3E04M000D084I	50 Ohms	SMA Plug	84 in	2.1 m	Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount	7 ft
Amphenol Custom Cable Q-3E04M000D048I	50 Ohms	SMA Plug	48 in	1200 mm	Bulkhead - Front Side Nut	Female	TNC Jack	LMR 195	6000 MHz	Shielded	50 Ohms	Free Hanging (In-Line)	Black	Male	SMA to TNC	50 Ohms	Panel Mount	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC LMR 195 24.00" (609.60mm)
