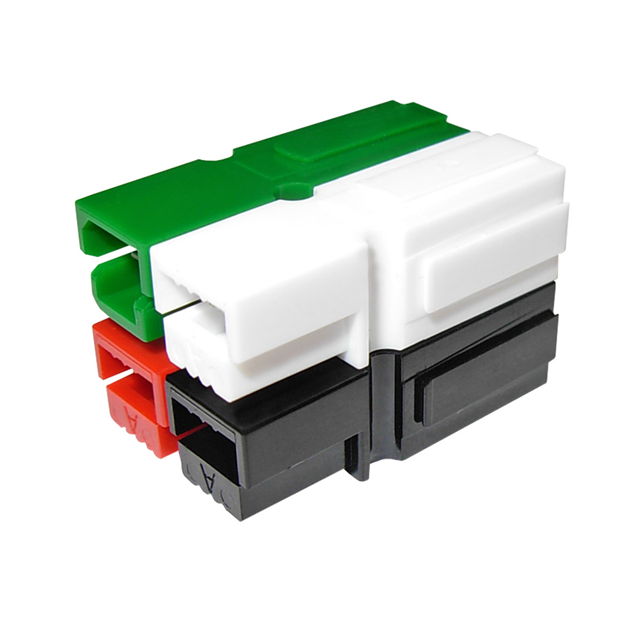

ASMFP30-2X2-EWRK
ActiveAnderson Power Products, Inc.
PP15/45 TWO ROW 2X2 ASSEMBLY BONDED ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMFP30-2X2-EWRK
ActiveAnderson Power Products, Inc.
PP15/45 TWO ROW 2X2 ASSEMBLY BONDED ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMFP30-2X2-EWRK |
|---|---|
| Color | Red, Green, White, Black |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating (Amps) | 55 A |
| Fastening Type | Spring Retention |
| Features | Stackable |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Stacking Direction | Top to Bottom and Side to Side |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ASMFP30 Series
4 Position Blade Type Power Housing Connector Non-Gendered, Self Mating Black, Green, Red, White
