24_N-50-3-14/133_NE

Active

Huber+Suhner, Inc.

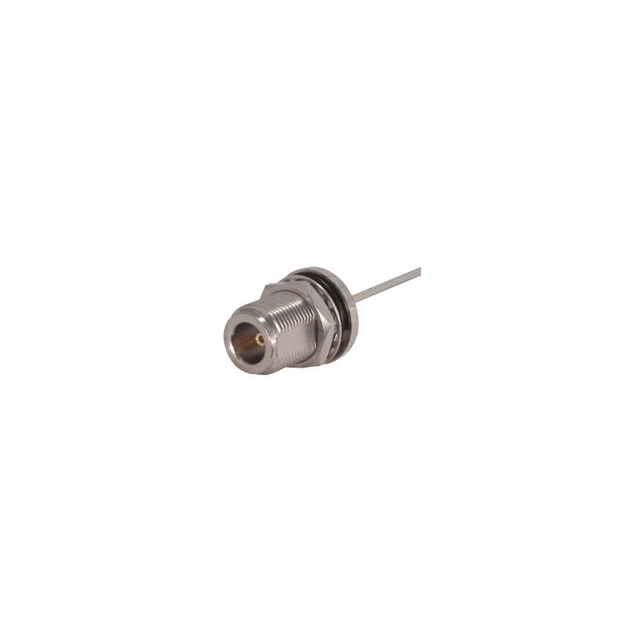

CONN TYPE N 0HZ TO 18GHZ 50OHM SOLDER ST PANEL MOUNT RCP GOLD OVER NICKEL INDIVIDUAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

24_N-50-3-14/133_NE

Active

Huber+Suhner, Inc.

CONN TYPE N 0HZ TO 18GHZ 50OHM SOLDER ST PANEL MOUNT RCP GOLD OVER NICKEL INDIVIDUAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24_N-50-3-14/133_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

24_N-50 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Feature	Connector Type	Cable Group	Body Finish	Center Contact Material	Connector Style	Number of Ports	Shield Termination	Dielectric Material	Frequency - Max [Max]	Voltage Rating	Impedance	Center Contact Plating	Housing Color	Mating Cycles	Body Material
Huber+Suhner, Inc. 24_N-50-2-117/133_NY	-65 ░C	165 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack	RD-316	White Bronze	Beryllium Copper	N Type	1	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	11 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-4-13/12-_NE	-60 °C	165 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack	RG-B4C	Nickel	Beryllium Copper	N Type	1	Clamp	Polytetrafluoroethylene (PTFE)	18 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-4-53/133_NE	-65 ░C	165 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack		White Bronze	Beryllium Copper	N Type	1	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	18 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-2-7/133_NE
Huber+Suhner, Inc. 24_N-50-3-51/19-_NE	-55 °C	70 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack			Beryllium Copper	N Type	1	Solder		18 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass Stainless Steel
Huber+Suhner, Inc. 24_N-50-3-45/133_NH	-65 ░C	165 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack	LMR-195	White Bronze	Beryllium Copper	N Type	1	Crimp	Polytetrafluoroethylene (PTFE)	11 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-9-36/033_-F
Huber+Suhner, Inc. 24_N-50-3-14/133_NE	-65 ░C	165 °C	Solder	Bulkhead - Front Side Nut	Female Socket Jack		White Bronze	Beryllium Copper	N Type	1	Solder	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	18 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-7-8/133_NE	-65 ░C	165 °C	Solder	Bulkhead - Front Side Nut	Female Socket Jack	214 RG-213	White Bronze	Beryllium Copper	N Type	1	Clamp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	11 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass
Huber+Suhner, Inc. 24_N-50-7-15/133_NE	-65 ░C	165 °C	Crimp	Bulkhead - Front Side Nut	Female Socket Jack	RG-214	White Bronze	Beryllium Copper	N Type	1	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	11 GHz	1000 VDC	50 Ohms	Gold	Silver	500	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.07
		10	$ 22.82
		100	$ 20.43

Description

General part information

24_N-50 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
