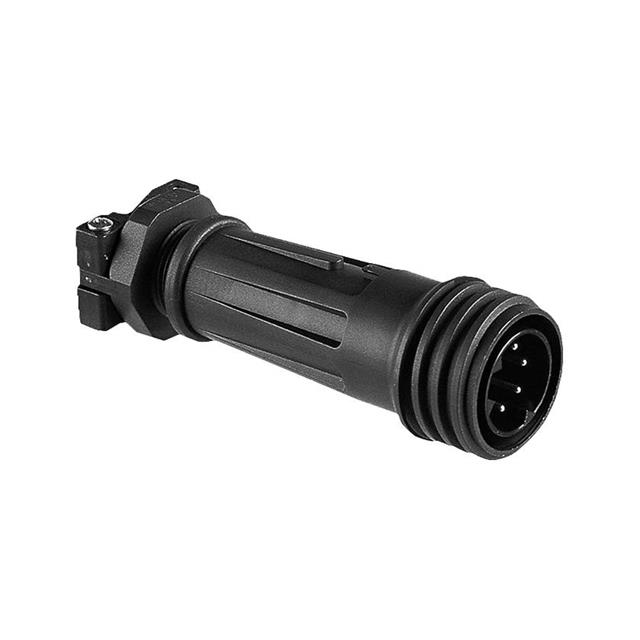

PXA921/05/P

Active

BULGIN LIMITED

CONN RCPT MALE 5POS NICKEL SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXA921/05/P

Active

BULGIN LIMITED

CONN RCPT MALE 5POS NICKEL SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXA921/05/P

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.866 in
Cable Opening [Max] [custom]	22 mm
Cable Opening [Min] [custom]	0.551 in
Cable Opening [Min] [custom]	14 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	UV Resistant, Trailing Neutral, Cable Clamp, Backshell
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

PXA921 Series

Part	Shielding	Connector Type	Orientation	Primary Material	Contact Material	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Features	Mounting Type	Termination	Backshell Material, Plating	Material Flammability Rating	Ingress Protection	Number of Positions	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXA921/05/P	Unshielded	Male Pins Receptacle	Keyed	Plastic	Brass	32 A	0.551 in	0.866 in	22 mm	14 mm	Backshell Cable Clamp Trailing Neutral UV Resistant	Free Hanging (In-Line)	Screw	Nylon Polyamide (PA)	UL94 V-0	IP68 IP69K	5	Black	Nickel	85 °C	-40 °C	600 VAC
BULGIN LIMITED PXA921/07/P	Unshielded	Male Pins Receptacle	Keyed	Plastic	Brass	32 A	0.551 in	0.866 in	22 mm	14 mm	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	Screw	Nylon Polyamide (PA)	UL94 V-0	IP68 IP69K	7	Black	Nickel	85 °C	-40 °C	430 VAC/DC
BULGIN LIMITED PXA921/04/P	Unshielded	Male Pins Receptacle	Keyed	Plastic	Brass	32 A	0.551 in	0.866 in	22 mm	14 mm	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	Screw	Nylon Polyamide (PA)	UL94 V-0	IP68 IP69K		Black	Nickel	85 °C	-40 °C	600 VAC	1	3	4
BULGIN LIMITED PXA921/10/S	Unshielded	Receptacle Female Sockets	Keyed	Plastic	Brass	10 A	0.551 in	0.866 in	22 mm	14 mm	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	Screw	Nylon Polyamide (PA)	UL94 V-0	IP68 IP69K	10	Black	Nickel	85 °C	-40 °C	250 VAC
BULGIN LIMITED PXA921/05/S	Unshielded	Receptacle Female Sockets	Keyed	Plastic	Brass	32 A	0.551 in	0.866 in	22 mm	14 mm	Backshell Cable Clamp Trailing Neutral UV Resistant	Free Hanging (In-Line)	Screw	Nylon Polyamide (PA)	UL94 V-0	IP68 IP69K	5	Black	Nickel	85 °C	-40 °C	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.15
		10	$ 42.35
		25	$ 40.72
		50	$ 39.37
		100	$ 37.19
		250	$ 36.11
Newark	Each	1	$ 56.82

Description

General part information

PXA921 Series

5 (4 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
