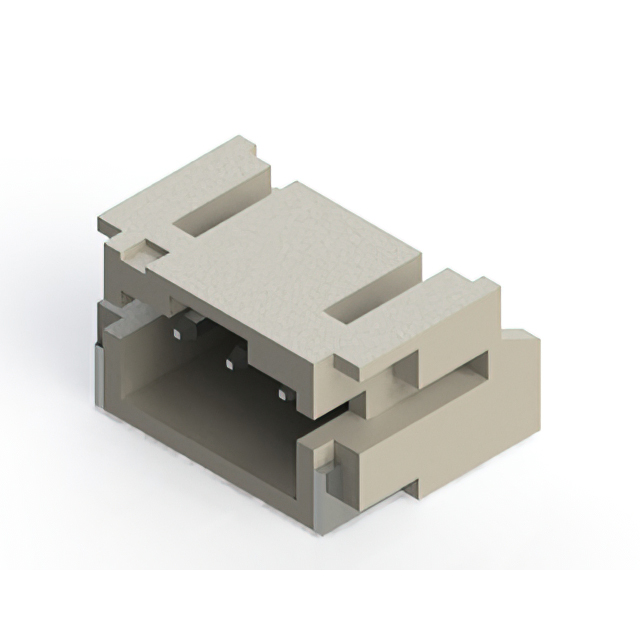

140-503-417-060
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 3 SUR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140-503-417-060
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 3 SUR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 140-503-417-060 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height [custom] | 5.51 mm |
| Insulation Height [custom] | 0.217 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 VAC |
140-503 Series
| Part | Insulation Material | Mounting Type | Connector Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Note | Features | Fastening Type | Contact Type | Pitch [x] | Pitch [x] | Number of Rows | Color | Shrouding | Contact Shape | Insulation Color | Voltage Rating | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] | Material Flammability Rating | Style | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions Loaded | Contact Finish - Post | Termination | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyamide (PA66) Nylon 6/6 | Free Hanging (In-Line) | Receptacle | Crimp | -25 °C | 85 °C | Contacts Not Included | Polarizing Key | Detent Lock | Female Socket | 0.079 in | 2 mm | 1 | Natural | |||||||||||||||||
EDAC Inc. | Polyamide (PA66) Nylon 6/6 | Through Hole | Header | -40 °C | 105 ░C | Detent Lock | Male Pin | 1 | Shrouded - 4 Wall | Square | Natural | 100 VAC | Brass | 0.079 in | 2 mm | UL94 V-0 | Board to Cable/Wire | 0.24 in | 6.1 mm | 2 A | All | Tin | Solder | ||||||||
EDAC Inc. | Polyamide (PA66) Nylon 6/6 | Through Hole Right Angle | Header | -40 °C | 105 ░C | Detent Lock | Male Pin | 1 | Shrouded - 4 Wall | Square | Natural | 100 VAC | Brass | 0.079 in | 2 mm | UL94 V-0 | Board to Cable/Wire | 0.185 in | 4.7 mm | 2 A | All | Tin | Solder | ||||||||
EDAC Inc. | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | Header | -25 °C | 85 °C | Solder Retention | Detent Lock | Male Pin | 1 | Shrouded - 4 Wall | Square | Natural | 100 VAC | Brass | 0.079 in | 2 mm | UL94 V-0 | Board to Cable/Wire | 2 A | All | Tin | Solder | 5.51 mm | 0.217 in | |||||||
EDAC Inc. | Polyamide (PA66) Nylon 6/6 | Through Hole Right Angle | Header | -40 °C | 105 ░C | Detent Lock | Male Pin | 1 | Shrouded - 4 Wall | Square | Natural | 100 VAC | Brass | 0.079 in | 2 mm | UL94 V-0 | Board to Cable/Wire | 0.197 in | 5 mm | 2 A | All | Tin | Kinked Pin Solder | ||||||||
EDAC Inc. | Polyamide (PA66) Nylon 6/6 | Through Hole | Header | -40 °C | 105 ░C | Detent Lock | Male Pin | 1 | Shrouded - 4 Wall | Square | Natural | 100 VAC | Brass | 0.079 in | 2 mm | UL94 V-0 | Board to Cable/Wire | 0.24 in | 6.1 mm | 2 A | All | Tin | Kinked Pin Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| Tape & Reel (TR) | 1000 | $ 0.19 | ||
Description
General part information
140-503 Series
Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)
