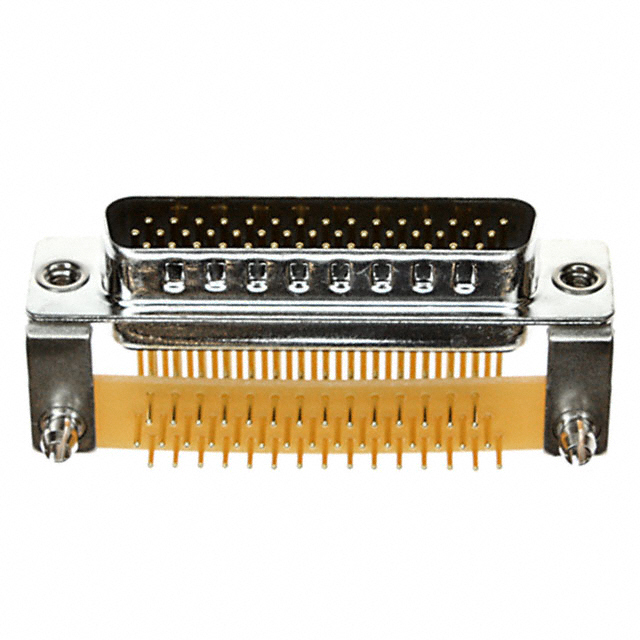

181-M44-113R141
ActiveMH Connectors
D SUB CONNECTOR, RIGHT ANGLE, HD44, HIGH DENSITY, PLUG, 181 M SERIES, 44 CONTACTS, DB, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
181-M44-113R141
ActiveMH Connectors
D SUB CONNECTOR, RIGHT ANGLE, HD44, HIGH DENSITY, PLUG, 181 M SERIES, 44 CONTACTS, DB, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 181-M44-113R141 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.90 | |
| 10 | $ 17.43 | |||
| 25 | $ 16.67 | |||
| 50 | $ 16.13 | |||
| 100 | $ 15.60 | |||
| 250 | $ 14.74 | |||
| 450 | $ 14.31 | |||
Description
General part information
181-M44 Series
44 Position D-Sub, High Density Plug, Male Pins Connector
